Chicago® Grip - Bell-System Type L Grip

Chicago® Grip - Bell-System Type L Grip
16845AT

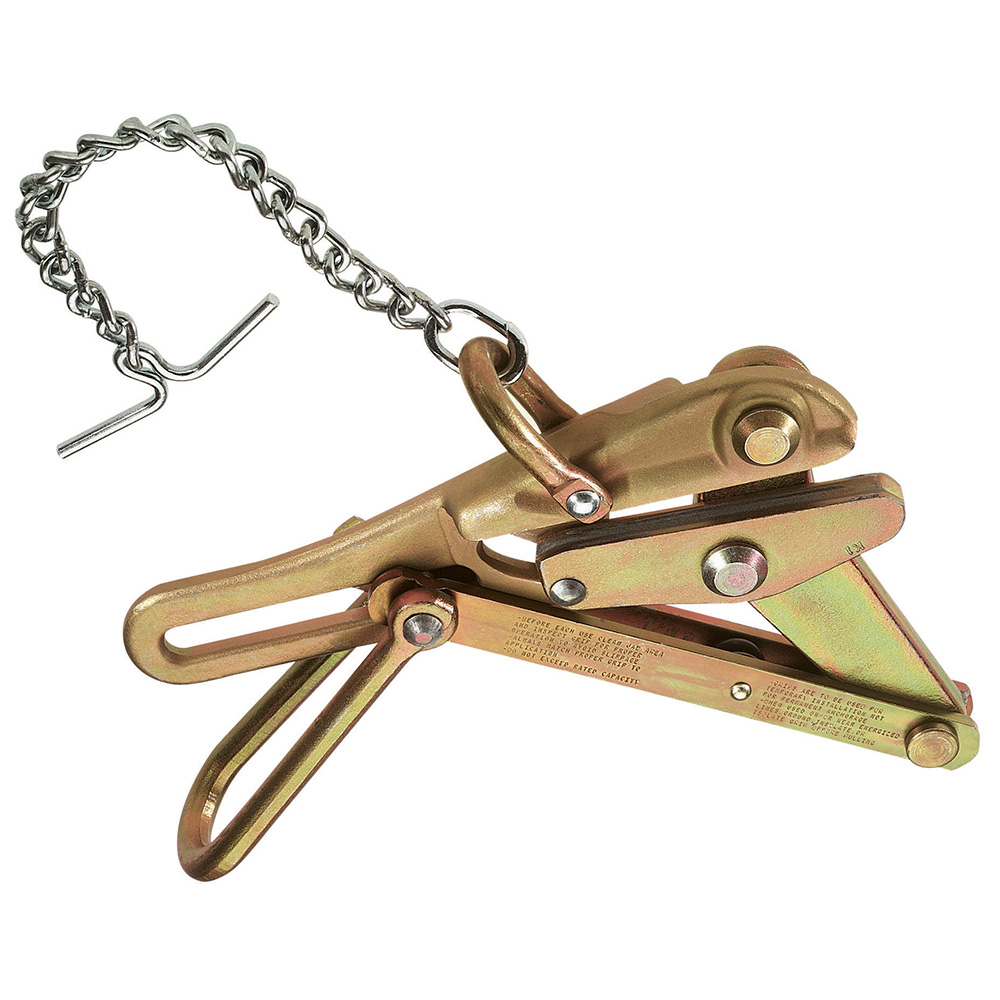

Chicago® Grip - Bell-System Type L Grip main product view

Chicago® Grip - Bell-System Type L Grip

16845AT

$553.68

  • Identical to Bell-System type ''L'' strand puller

  • For cable diameter range of 0.218 to 0.550-Inch (5.54 to 13.97 mm); Max Safe Load of 8000-Pound (3629 kg)

  • Outside diameter of support wire includes thickness of polyethylene coating

  • Equipped with chain, toggle and shackle to keep grip from falling off the cable

  • Made in USA

  • For support wire 0.134 and larger, refer to 1659 series

Product Icon: klein/wp_made-usa-en.jpg
Downloads
Telecom Catalog
Applications
Care & Maintenance

Designed for use on aluminum, copper, weatherproof coated wire, PVC covered conductors and messenger and guy strand. Identical to Bell-System type L strand puller. Equipped with chain, toggle and shackle. For support wire 0.134-Inch and larger, refer to 1659 series. Outside diameter of support wire includes thickness of polyethylene coating.

Specifications
Type:
Chicago Grip
Application:
Wire Pulling
Special Features:
''L'' Strand Puller -- Equipped With a Chain, Toggle and Shackle
Cable Type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.218'' to 0.55'' (5.54 to 13.97 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
Y
Jaw Type:
Double V
Jaw Length:
5'' (12.7 cm)
Maximum Safe Load:
8000 lb (3629 kg)
Weight:
6.9 lb (3.12 kg)
UPC:
92644471636
California residents:

Warning: California ResidentsWARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
