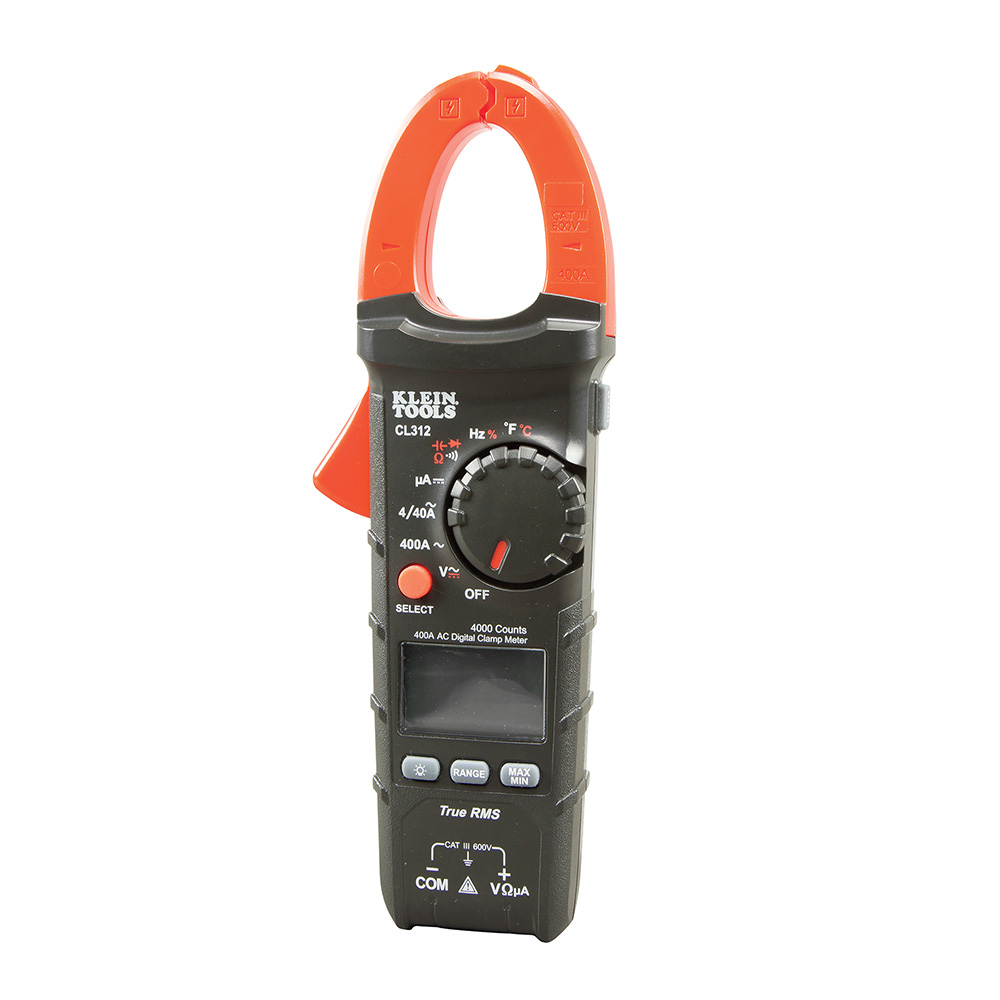

Clamp Meter, HVAC Digital AC Auto-Ranging Tester, 400 Amp with Temp
CL312
Clamp Meter, HVAC Digital AC Auto-Ranging Tester, 400 Amp with Temp
CL312
$74.96
Clamp Meter with automatically ranging true mean squared (TRMS) technology for increased accuracy
Measures AC current via the clamp and AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance and test diodes via the test leads
Thermocouple probe measures temperature
Built to withstand a 3.3-Foot (1 m) drop
CAT III 600V, Class 2, Double insulation safety rating
Backlit display for clear readings
Powers off automatically after 15 minutes of non-use to conserve battery life

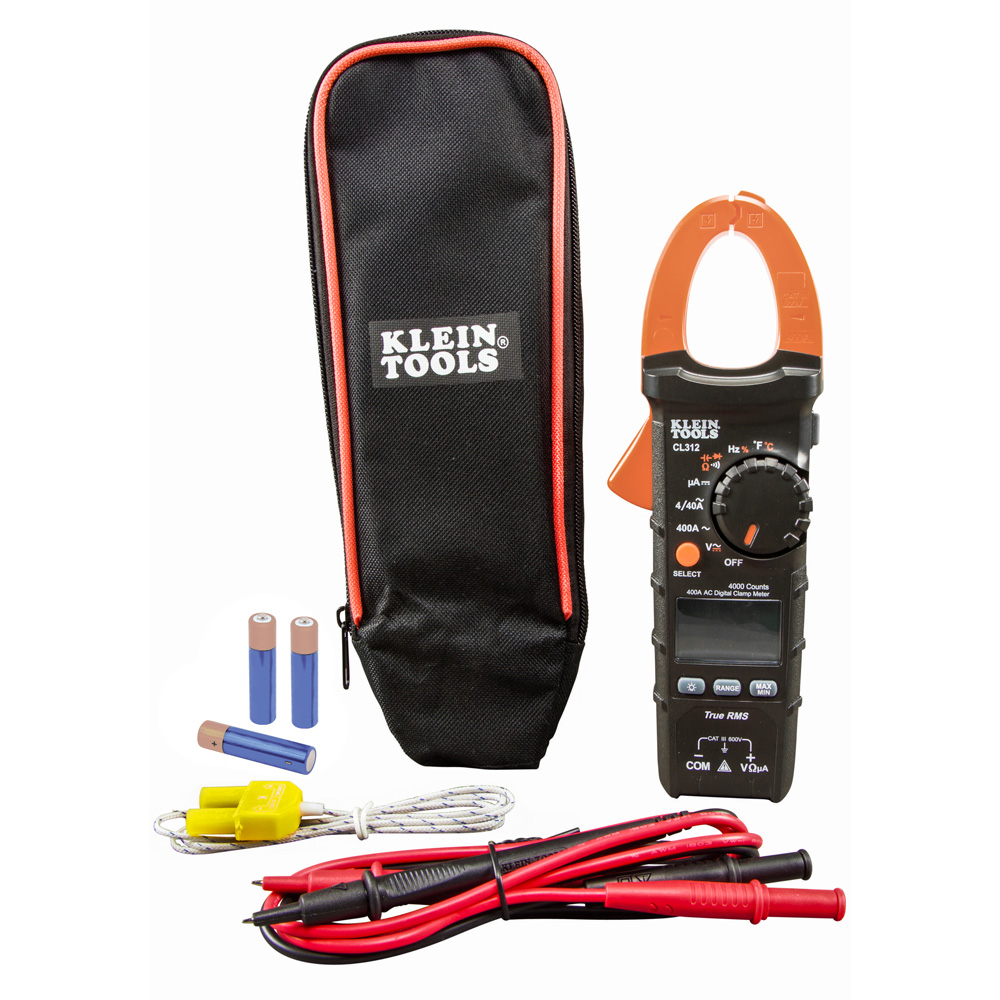

Includes a carrying case, test leads and 3 x AAA batteries
Low battery indicator and easily accessible battery compartment
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Klein Tools CL312 Electrical Tester is an automatically ranging true root mean square (TRMS) digital clamp meter. It measures AC current via the clamp, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance, and tests diodes via test-leads, and temperature via a thermocouple probe. Features include Auto Range to improve efficiency and speed when making measurements; Diode Test to troubleshoot malfunctioning diodes; Max/Min to understand the variability from average of an electrical property being measured, and DC Microamps measurements when working with flame sensors.
Specifications
Type:
Voltage, Current, Resistance, Continuity
Application:
Measures AC Current, DC microamp current
Special Features:
Low Battery Indicator, DC microamps (uA)
Material:
ABS
Batteries:
3 x AAA
Auto-Power Off:
Yes
Jaw Size:
1.12'' (2.9 cm)
Drop Protection:
3.3' (1 m)
Display:
4000 Count LCD
Functions:
AC current, AC/DC voltage, DC microamps, resistance, continuity, frequency, capacitance and test diodes
Voltage:
600V AC; 600V DC
Frequency:
10Hz - 1 MHz
Current:
400A AC
Capacitance:
4000µF
Ohms (Resistance):
40MΩ
AC Voltage:
600
DC Voltage:
600
DC Polarity Indicator:
Yes
DC Micro-Amp:
200 μA
Temperature Range:
-40° to 1832°F (-40° to 1000°C)
Standard:
CAT III 600V; CE Certified
Included:
Carrying Case, Test Leads, Thermocouple, Batteries
Overall Length:
8.7'' (22.1 cm)
Overall Height:
1.61'' (4.1 cm)
Overall Width:
3.02'' (7.7 cm)
Weight:
10.1 oz (286 g)
UPC:
92644691379
California residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Warnings
- Do not attempt to measure resistance or continuity on live circuits.
- Follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
