Digital Clamp Meter AC Auto-Ranging TRMS
CL310
Digital Clamp Meter AC Auto-Ranging TRMS
CL310
$61.38
This model is obsolete/no longer in production. Please refer to the CL312 as an equivalent replacement.
Automatically ranging true mean squared (TRMS) technology for increased accuracy
Clamp measures AC current
Test leads measure AC/DC voltage, resistance, continuity, frequency, capacitance and diodes
Thermocouple probe measures temperature
CAT III 600V, Class 2, Double insulation safety rating
Built to withstand a 3.3' (1m) drop
Low battery indicator and easily accessible battery compartment

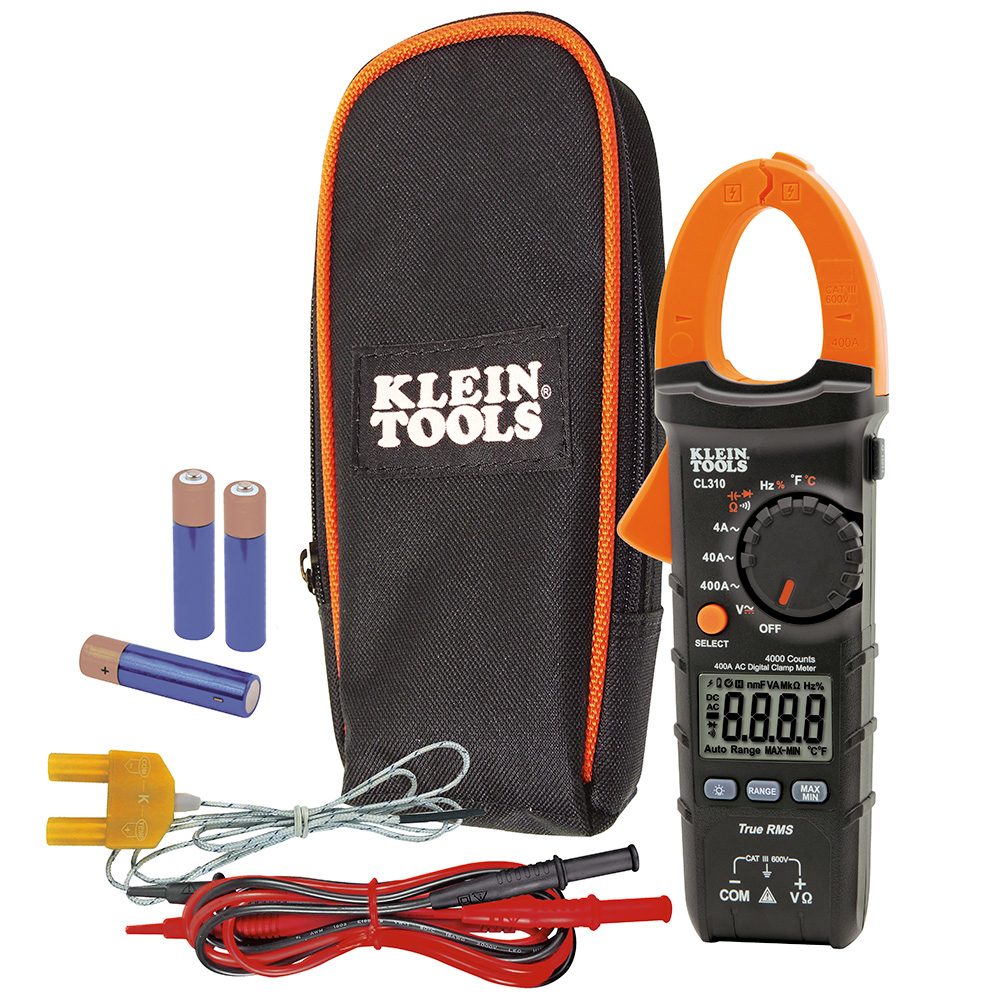

Includes carrying pouch, test leads, thermocouple with adapter and batteries
Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
Operating altitude to 6,562' (2,000 m)
Operating temp: 32°F to 122°F (0°C to 50°C)

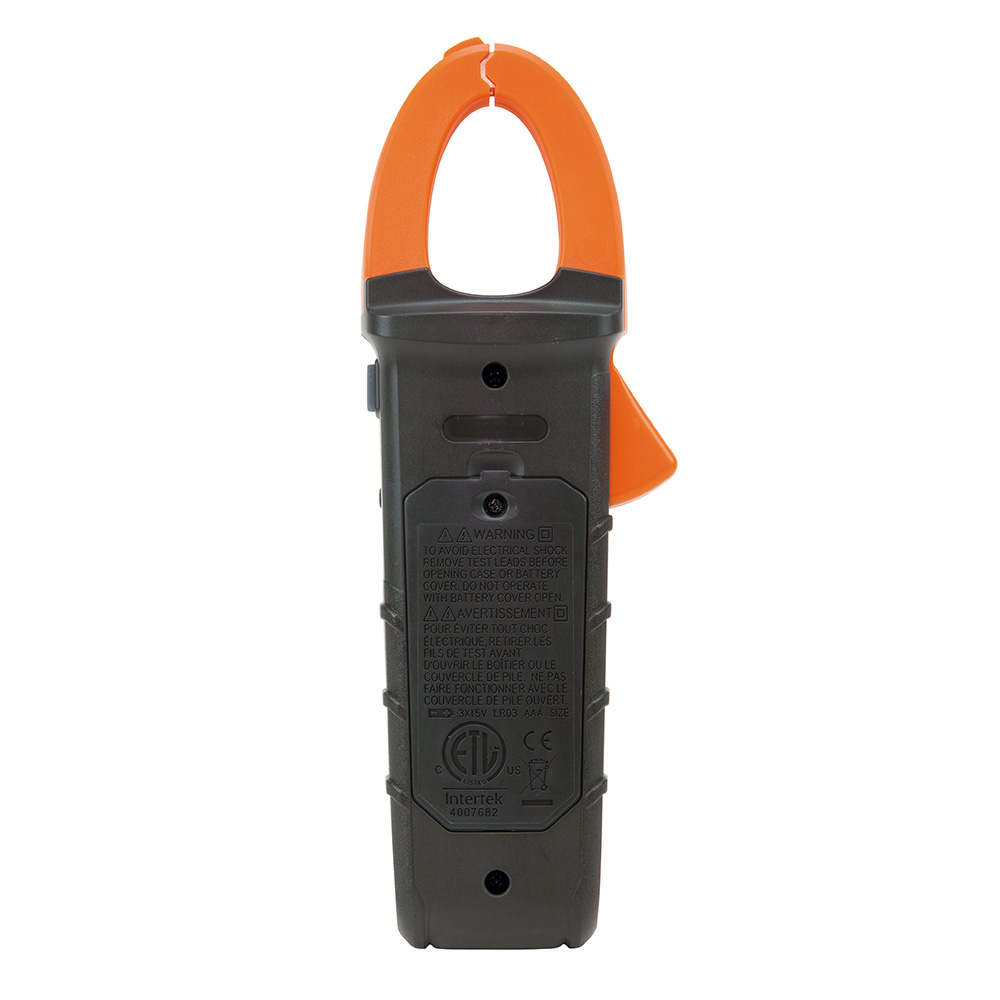

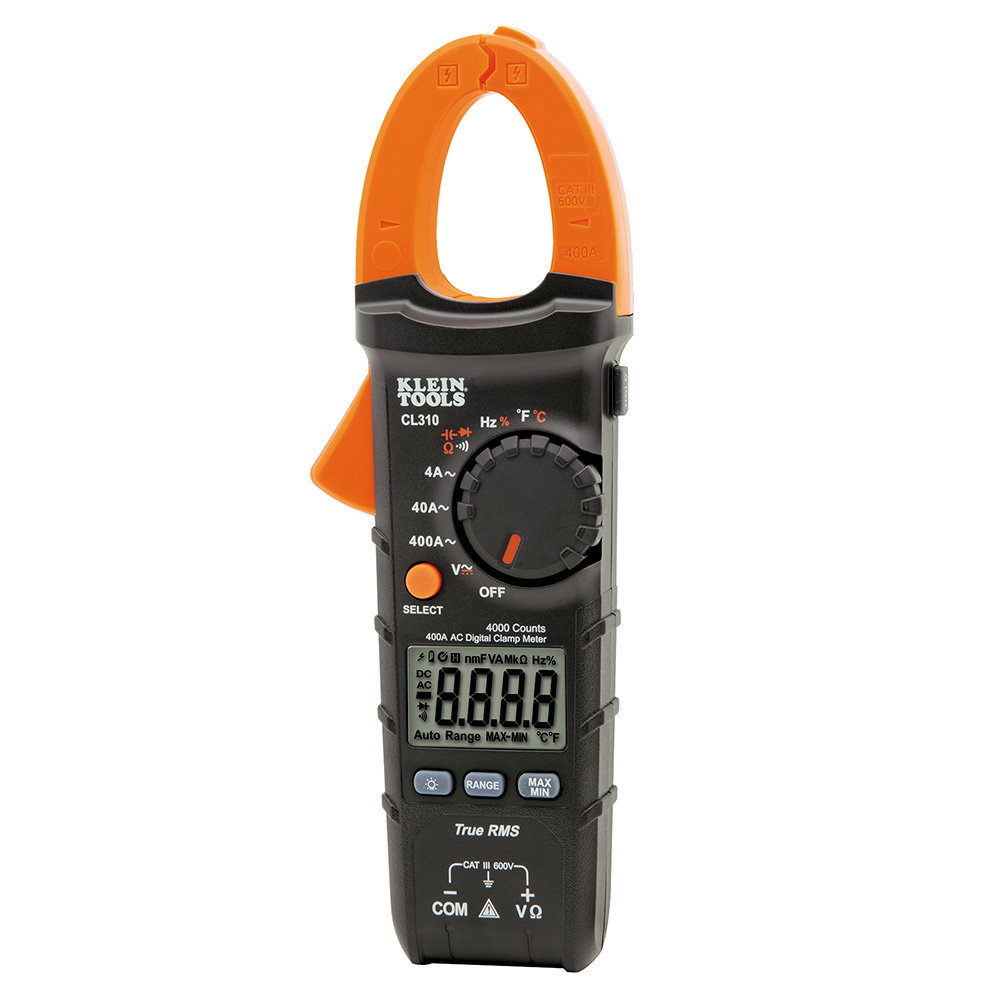

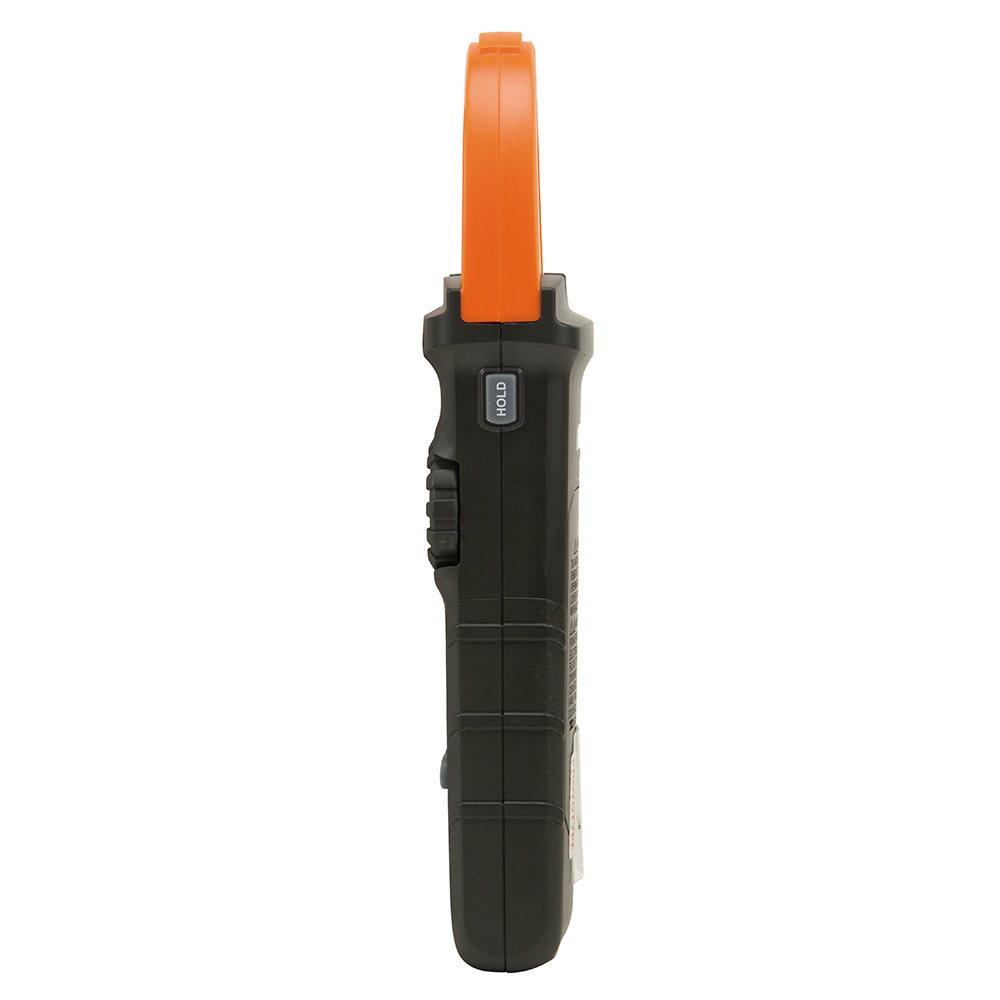

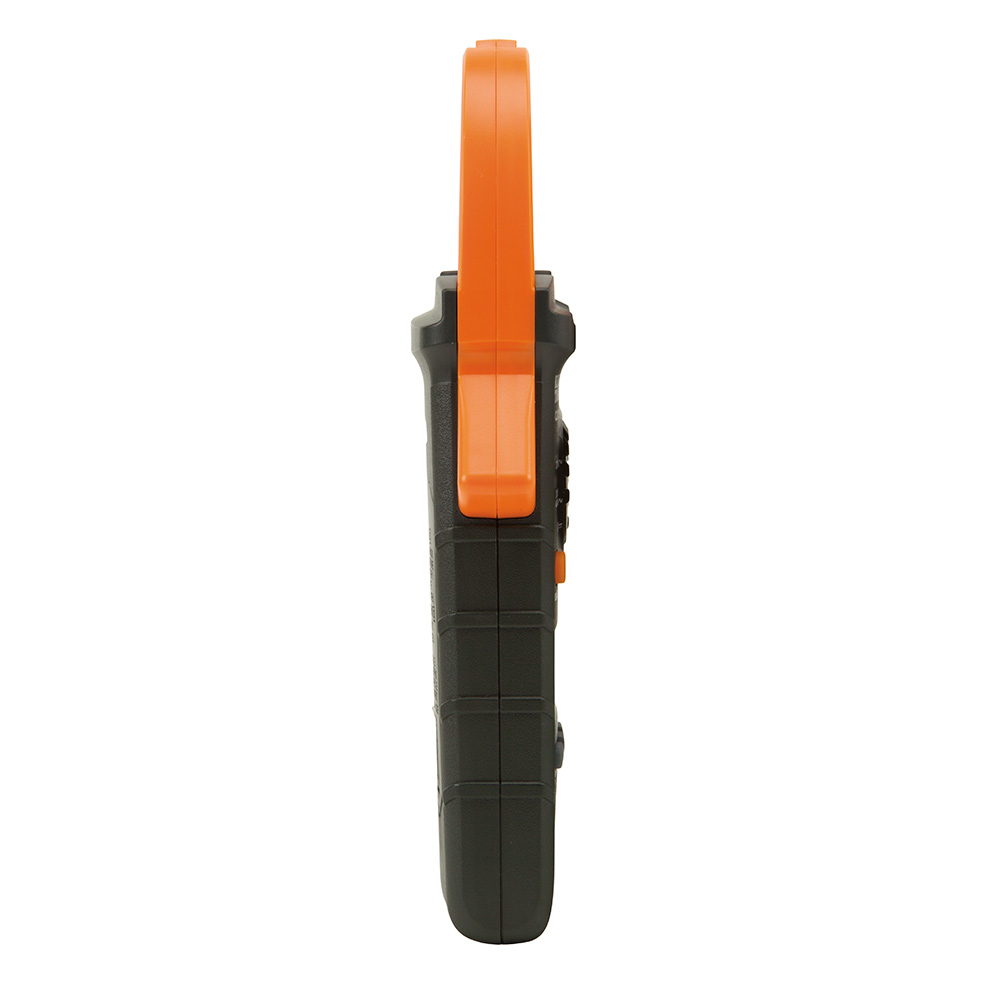

Klein Tools CL310 is an automatically ranging true mean squared (TRMS) digital clamp meter that measures AC current via the clamp, AC/DC voltage, resistance, continuity, frequency, capacitance, and diodes via test-leads, and temperature via a thermocouple probe. It is no longer in production. Please refer to the CL312 as an equivalent replacement.
Specifications
Application:
Measures AC Current
Special Features:
Features Low Battery Indicator
Batteries:
3 x AAA
Jaw Size:
1.125'' (2.9 cm)
Drop Protection:
3.3' (1 m)
Display:
4000 Count LCD
Voltage:
600V AC; 600V DC
Frequency:
10Hz - 1 MHz
Current:
400A
Capacitance:
4000µF
Ohms (Resistance):
40MO
Temperature Range:
-40° - 1832°F (-40° - 1000°C)
Standard:
CAT III 600V; CE Certified
Included:
Carrying Case, 41'' (1041.4 mm) Test Leads, Thermocouple with Adapter, and Batteries
Overall Length:
8.703'' (22.1 cm)
Overall Height:
1.609'' (4.1 cm)
Overall Width:
3.016'' (7.7 cm)
Weight:
10.1 oz (286 g)
UPC:
92644690594
California residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Warnings
- Do not attempt to measure resistance or continuity on live circuits.
- Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
- Before each use verify meter operation by measuring a known voltage or current.
- Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
