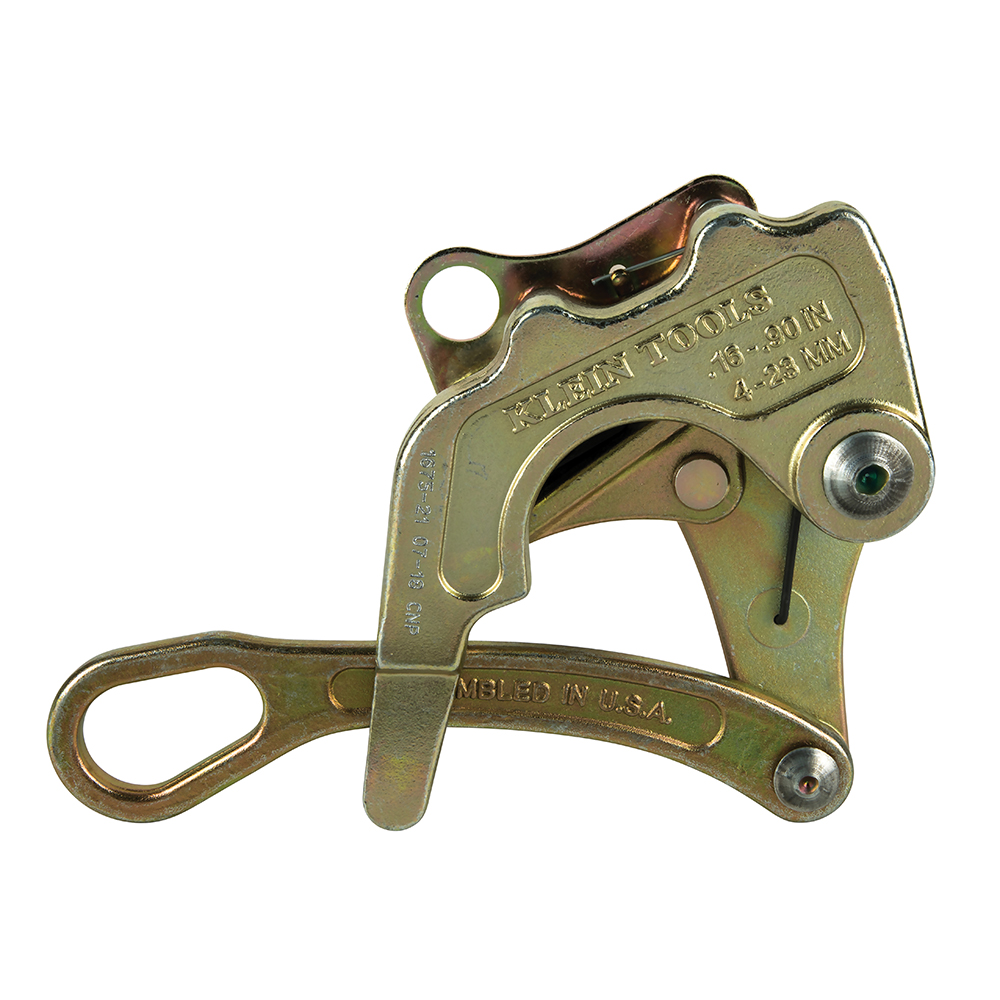

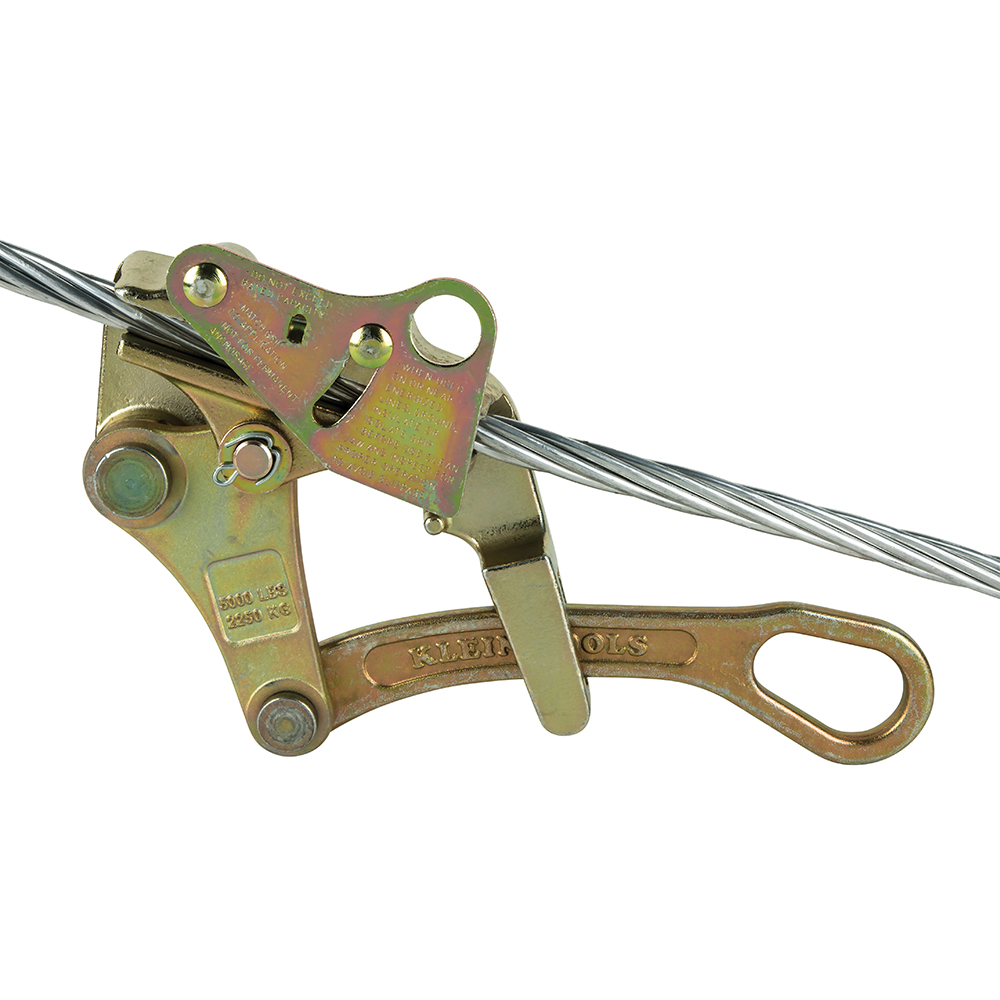

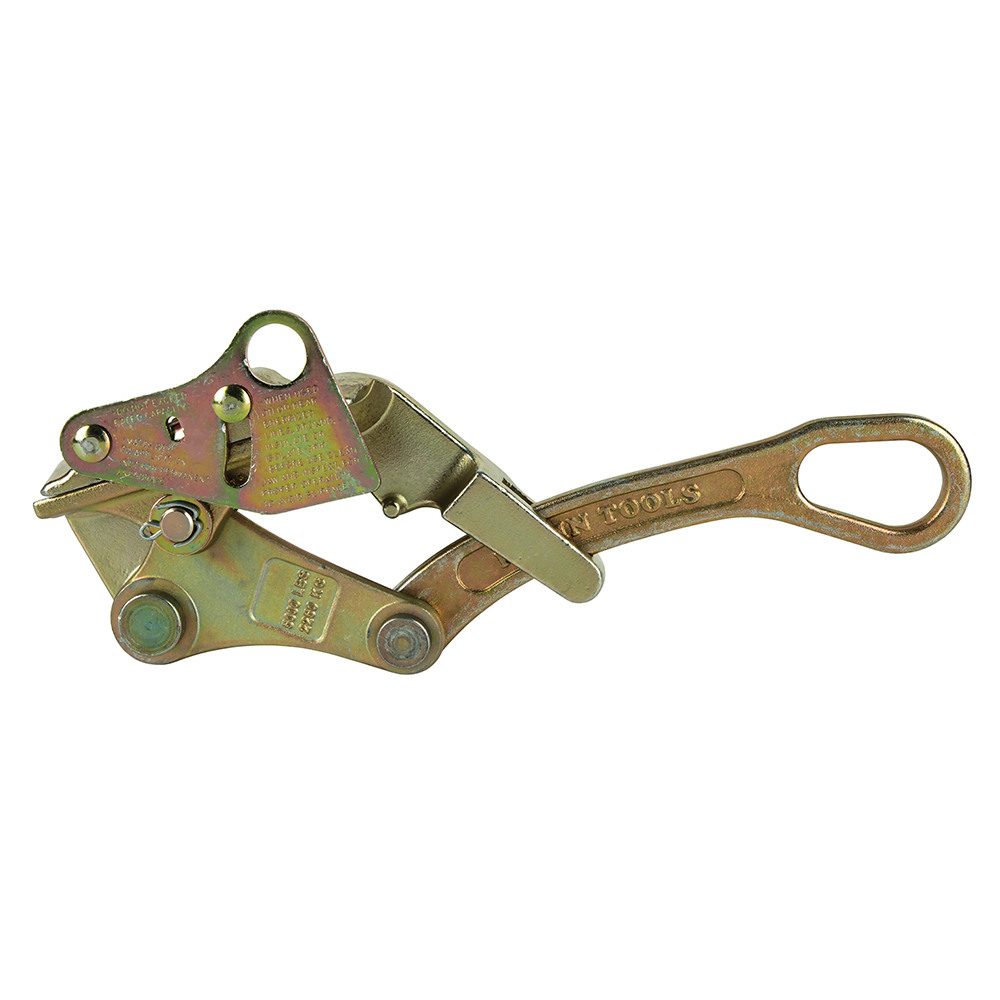

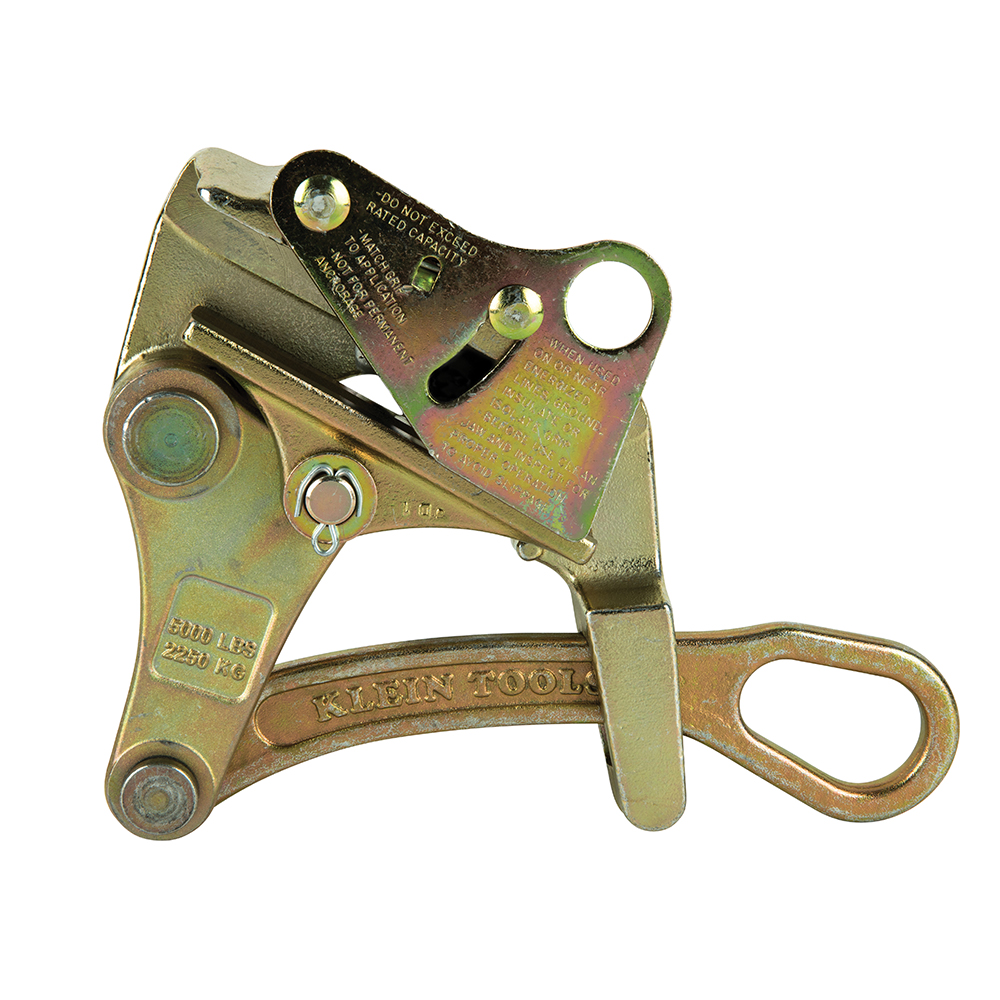

Parallel Jaw Grip with Hot Latch

Parallel Jaw Grip with Hot Latch
167521
Parallel Jaw Grip with Hot Latch view 1
Parallel Jaw Grip with Hot Latch view 2
Parallel Jaw Grip with Hot Latch view 3
Parallel Jaw Grip with Hot Latch view 4
Parallel Jaw Grip with Hot Latch view 5
Parallel Jaw Grip with Hot Latch view 6
Parallel Jaw Grip with Hot Latch view 7
Parallel Jaw Grip with Hot Latch main product view

Parallel Jaw Grip with Hot Latch

167521

$359.27

  • Versatile grip holds 0.16-Inch to 0.90-Inch ACSR cable with max safe load of 5000-Pound (2268 kg)

  • Round jaws provide maximum contact with the cable minimizing deformation

  • Large opening in handle accommodates a wide variety of hooks on hoists, winches and tackle blocks

  • Hot latch closes automatically to guard against grip accidentally disengaging from wire

  • Made in USA

Product Icon: klein/wp_made-usa-en.jpg
Downloads
Brochure

This lightweight, compact grip pulls ACSR cable from 0.16 to 0.90-Inch (2.3 to 0.4 CM) in diameter. The round jaw provides maximum contact with the cable while minimizing deformation. The hot latch closes automatically to guard against the grip accidentally disengaging from wire.

Specifications
Type:
Chicago Grip
Application:
Wire Pulling
Special Features:
Hot Latch, Spring
Overall Length:
9.78'' (24.8 cm)
Overall Height:
2.31'' (5.9 cm)
Overall Width:
7.53'' (19.1 cm)
Material:
Steel
Cable Type:
ACSR, AAC, Copper
Cable Diameter:
0.16'' to 0.90'' (4.06 to 22.86 mm)
Hot Latch:
Y
Swing Latch:
N
Spring:
Y
Locking Handle:
N
Jaw Type:
Round - Serrated
Jaw Length:
5'' (12.7 cm)
Maximum Safe Load:
5000 lb (2268 kg)
Weight:
7.8 lb (3.5 kg)
UPC:
92644470684
California residents:

Warning: California ResidentsWARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near energized lines, ground, insulate, or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
