Cable Tester, VDV Commander™ Test & Tone Kit

Cable Tester, VDV Commander™ Test & Tone Kit
VDV501829

Cable Tester, VDV Commander™ Test & Tone Kit

VDV501829

$749.99
  • Cable tester locates, tests and measures coaxial, data (RJ45) and telephone (RJ11) cables

  • Identify wiring faults including miswire, open fault, short fault, split-pair, wire map

  • Detect, identify and test Power over Ethernet (PoE)

  • Measure cable length and distance-to-fault with Time Domain Reflectometry (TDR) technology

  • Four tone options with probe included

  • Measure paired-conductor cables up to 1500-Foot (457 m) with accuracy of up to +/-(5-Percent and 1-Foot/0.3 m)

  • Single-end cable testing or complete two-end cable testing with Test-n-Map™ ID Remote

  • Perform active network (Ethernet) testing -- detect capabilities and connection speeds

  • Locate and identify cables with location ID remotes, Test-n-Map™ ID remote, Link Light and Tone Generator

  • Test and identify location in one step (two-end testing) with a set of twenty coax and twenty LAN/RJ45 locate and ID remotes, and one Test & Map remote

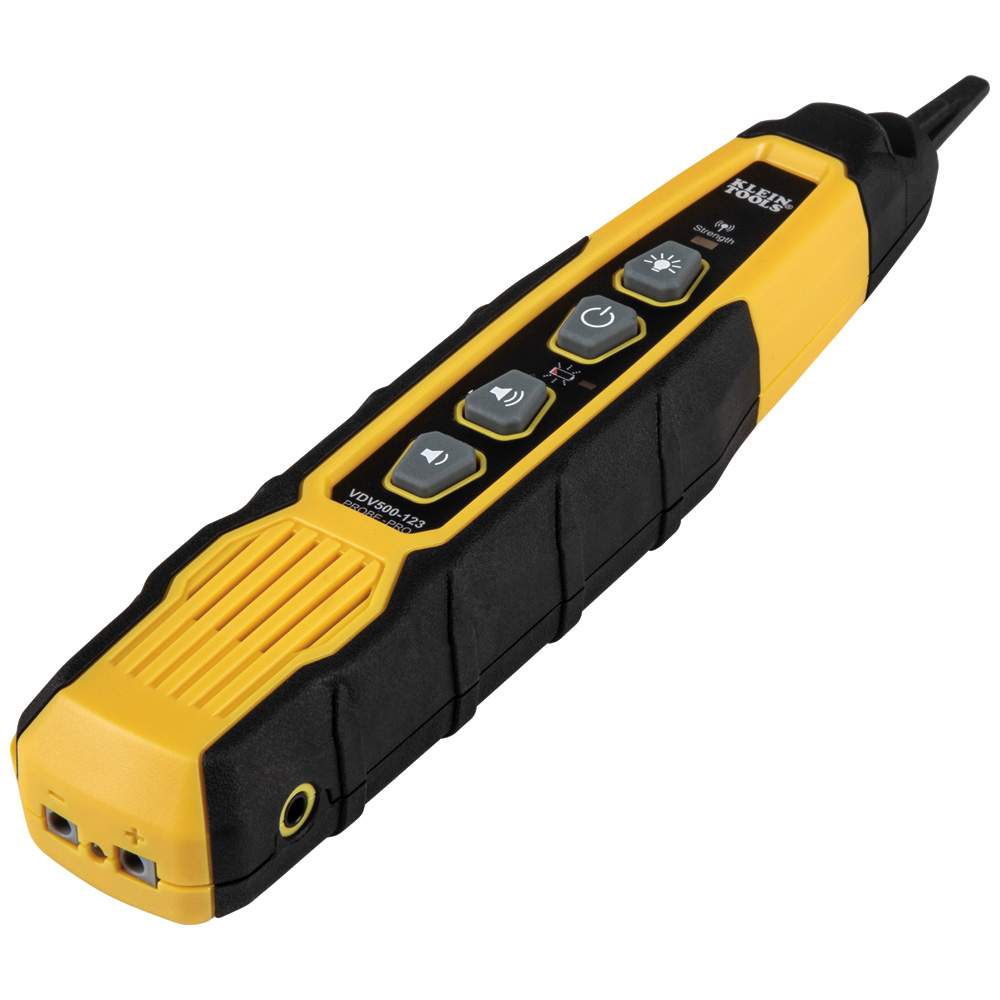

  • Multiple style (4 cadences) tone generator capable of sending a tone on a single conductor, a conductor pair or over all conductors. Kit includes required Probe-PRO Tracing Probe (VDV500-123)

  • Visually identify a hub or switch and locate cable runs with Link Light

  • Save up to 256 cable or network tests, export and print reports

  • Download brochure for more details and kit contents

  • Emits an analog signal detectable by analog signal probes

Product Icon: klein/wp_assembled-usa-en.jpg
Product Icon: klein/wp_ce.jpg
Product Icon: klein/wp_ukca.jpg

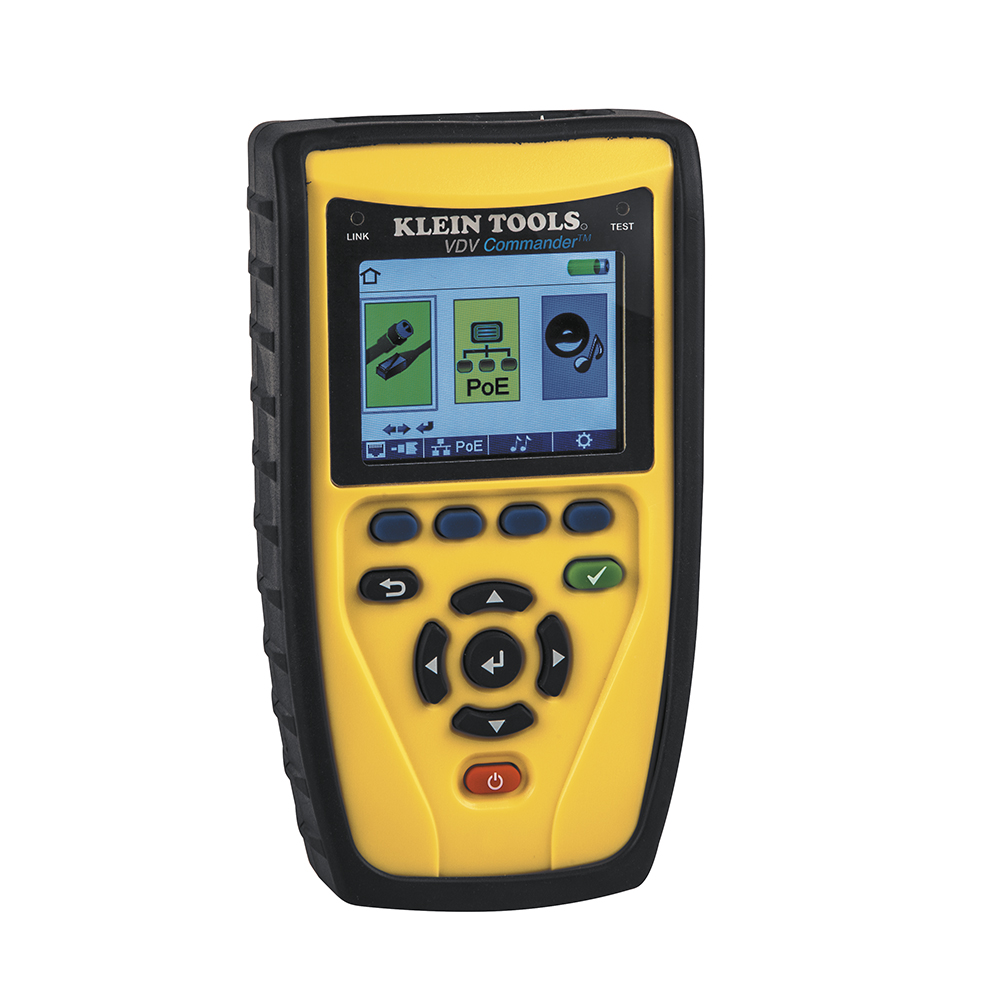

Klein Tools' VDV Commander™ with Test-n-Tone Kit locates, tests and measures coax, data and telephone cables to ensure fast and accurate installations. It is ideal for identifying wiring faults including miswire, open fault, short fault, split-pair, and wire map. In addition, the Commander detects Power over Ethernet (PoE) and can store and output test results for easy report management.

Specifications
Application:
Cable Testing
Special Features:
Accuracy/Measurement Resolution, Active Ethernet Detects Link Speed and Capabilities 10/100/1000base-T half or full duplex. Can link to network at 10/100base-T; Customizable Setup; Imperial or Metric Results; Multiple Languages: English/Spanish/French; Single-End Cable Testing
Cable Type:
RG59, RG6/6Q, RG7/11, CAT3, CAT5, CAT6/6A
Overall Length:
4.375'' (11.1 cm)
Overall Height:
6.797'' (17.3 cm)
Test-n-Map ID Remotes:
1
Location ID:
20
Batteries:
Commander: 6 x AA Alkaline Probe: 1 x 9V Alkaline
Battery Life:
Commander: 20 hr Active, 10 yr. Standby; Probe: 25 hr Active, 4 yr. Standby
Supported Remotes:
(20) F-Connector CoaxMap ID/RJ45LanMap ID
Display:
LCD
Multiple Style Tone Generator:
Yes (4)
Test & Measure Types:
Cable Length Measurement to 1500 ft (457 m); Miswire Fault Detection; Open Fault Detection; Power Over Ethernet Detection; Shield Detection; Short Fault Detection; Split-Pair Fault Detection
Accuracy:
Length Measurement: +/- 5% + 1ft (0.3m)
Included:

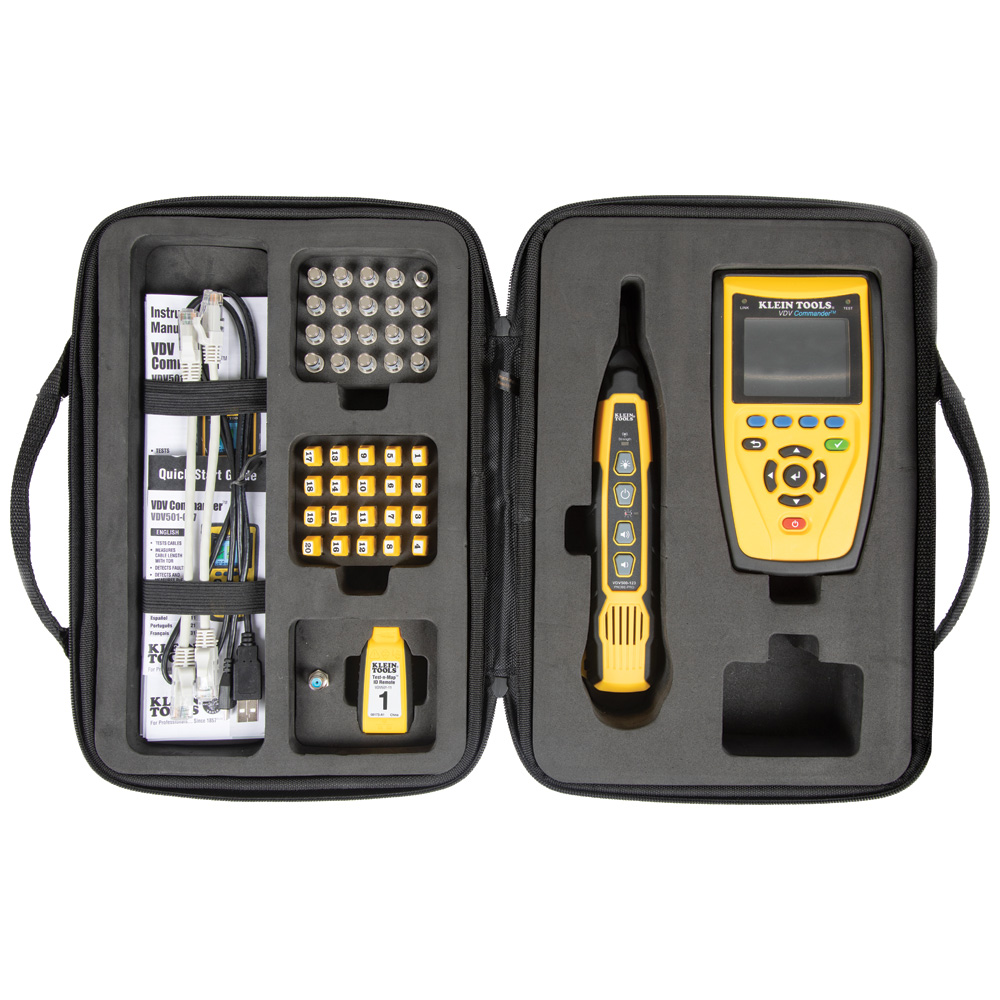

Tester, Probe, Test-n-Map Remote #1, (20) LanMap ID Remotes, (20) CoaxMap ID remotes, USB/RJ12/RJ45 Test Cables, Coax Adapter, (6) AA Batteries, 9V Battery, Carrying Case
Weight:
5.04 lb (2.28 kg)
UPC:
92644582127
California residents:

Warning: California ResidentsWARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.

Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
  • Always wear approved eye protection.
  • Do NOT use on energized circuits.
