VDV Ranger TDR Kit with Carry Case and Adapters
VDV501815
VDV Ranger TDR Kit with Carry Case and Adapters
VDV501815
$311.13

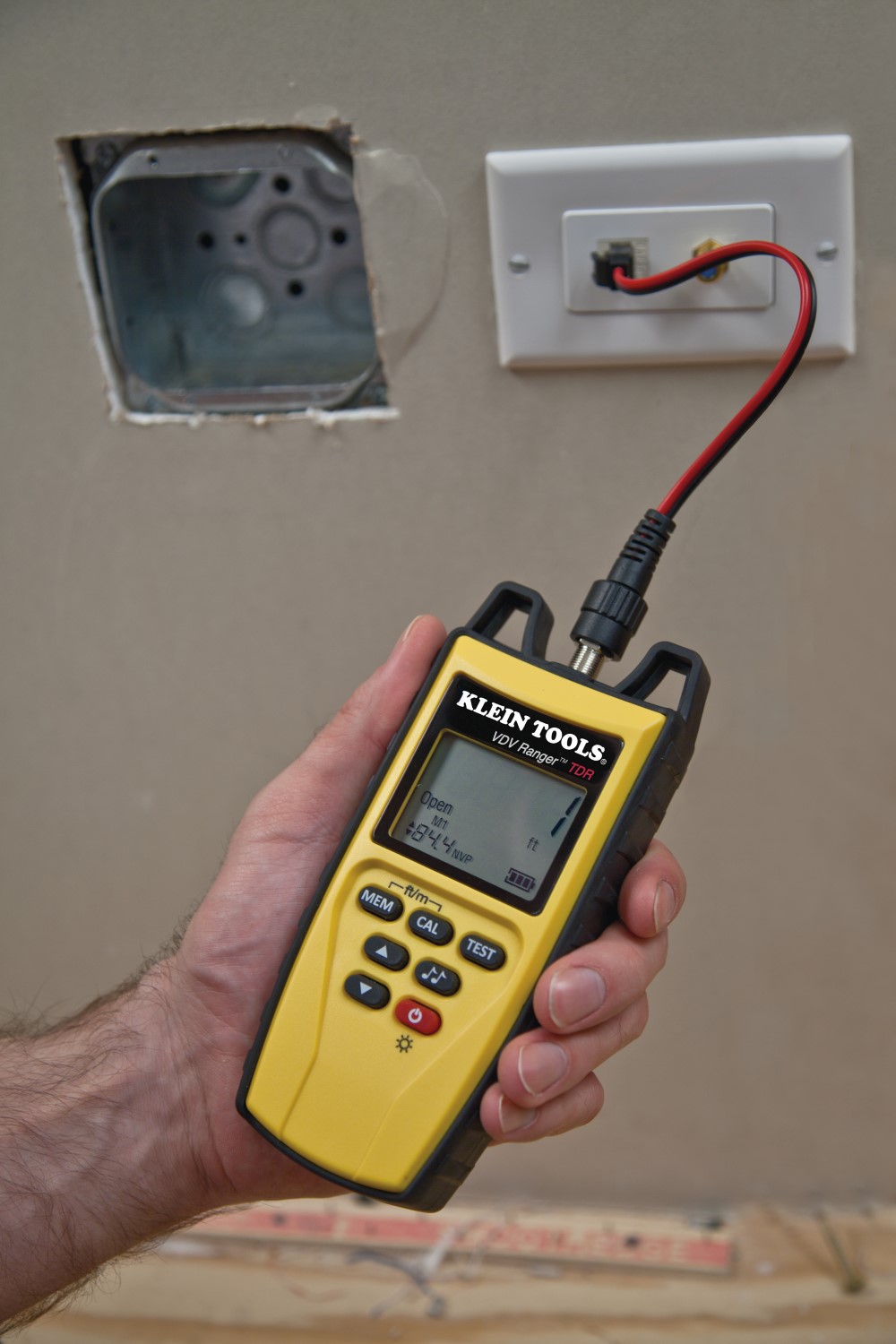

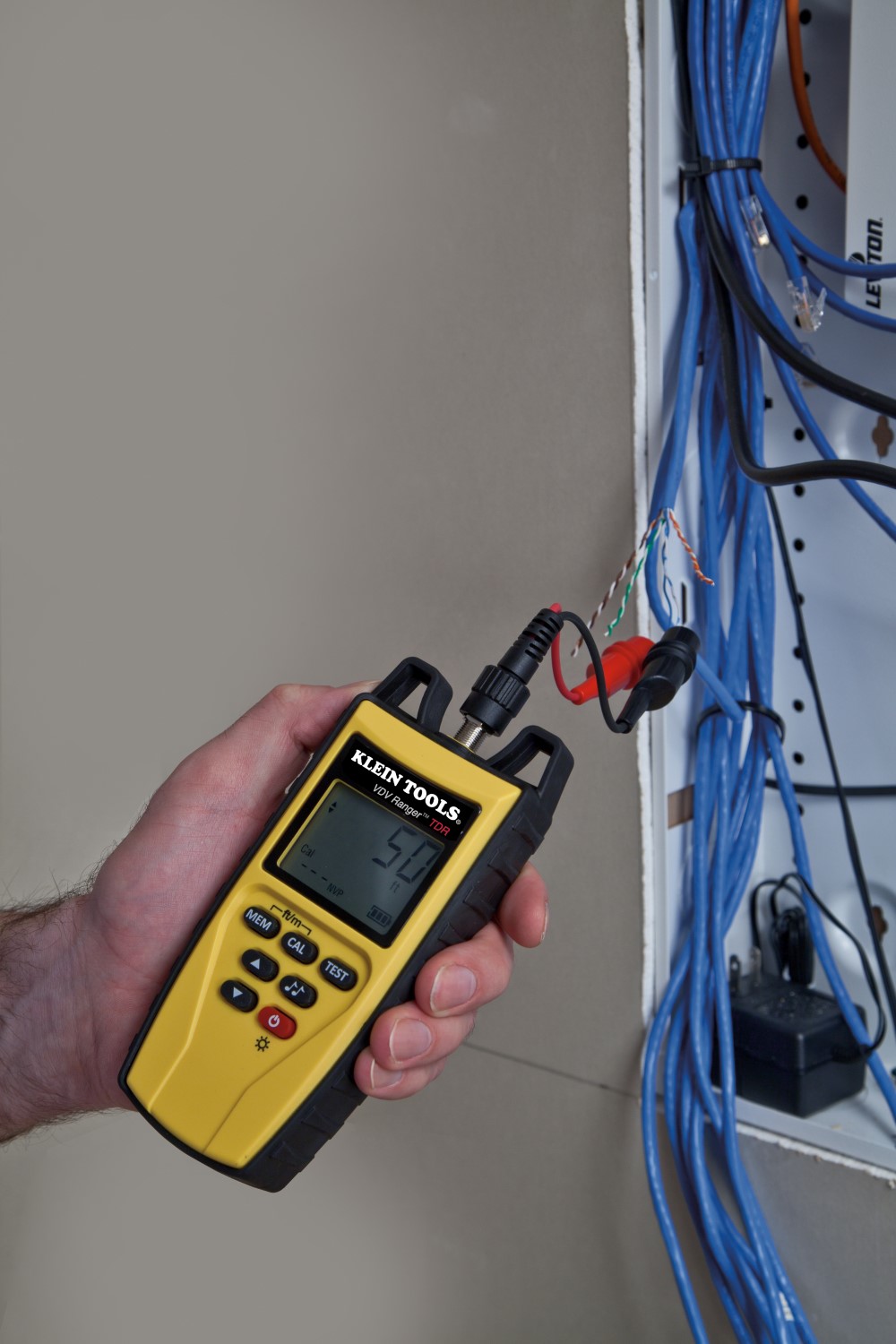

Test and measure cable length with the latest technology
Time Domain Reflectometry Spread Spectrum (TDR-SS) technology provides superior accuracy up to +/- (1% + 3-feet /0.91 m) by eliminating interference when measuring cable
TDR-SS technology broadens TDR environments by operating in Safety Extra Low Voltage (SELV) rated environments as defined by IEC. (SELV is 60 volts DC or Peak AC -- 45 volts RMS)
Measure cable length up to 3,000-feet (914 m) including voice, data, video, doorbell, lamp-wire and NM cables

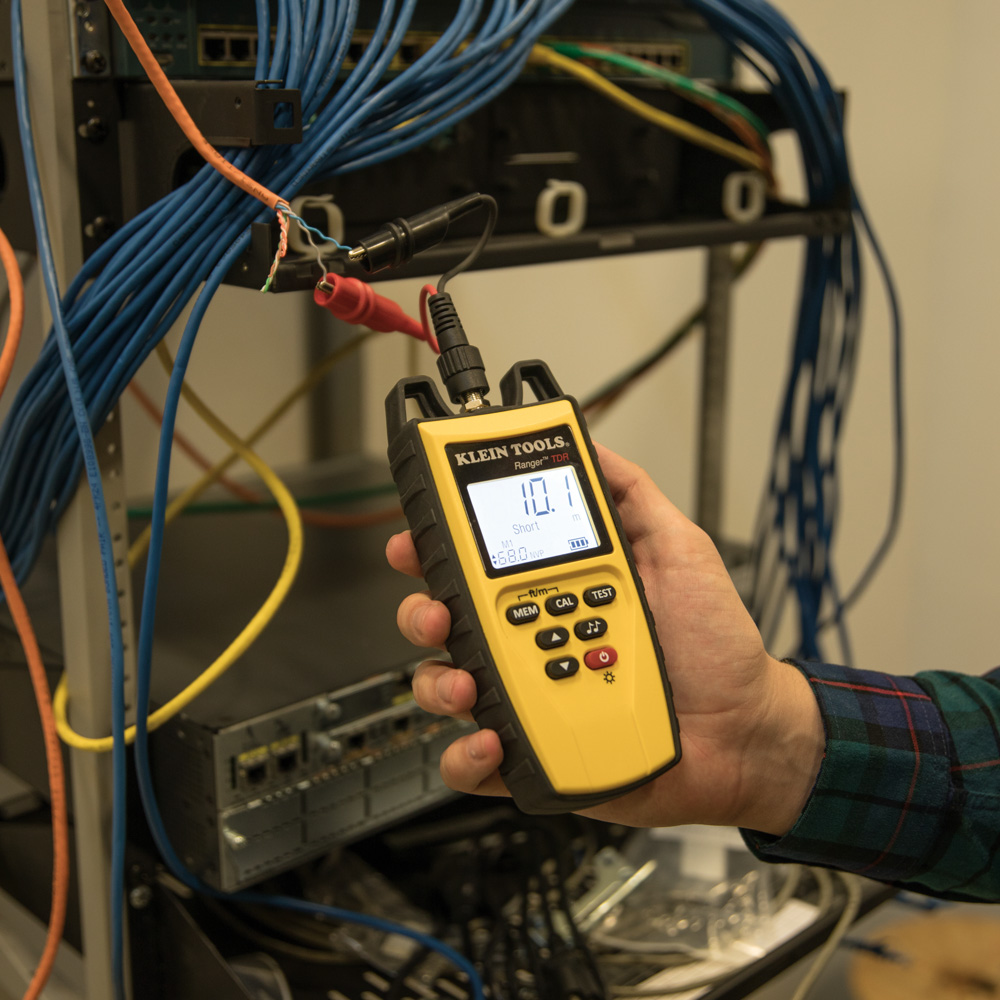

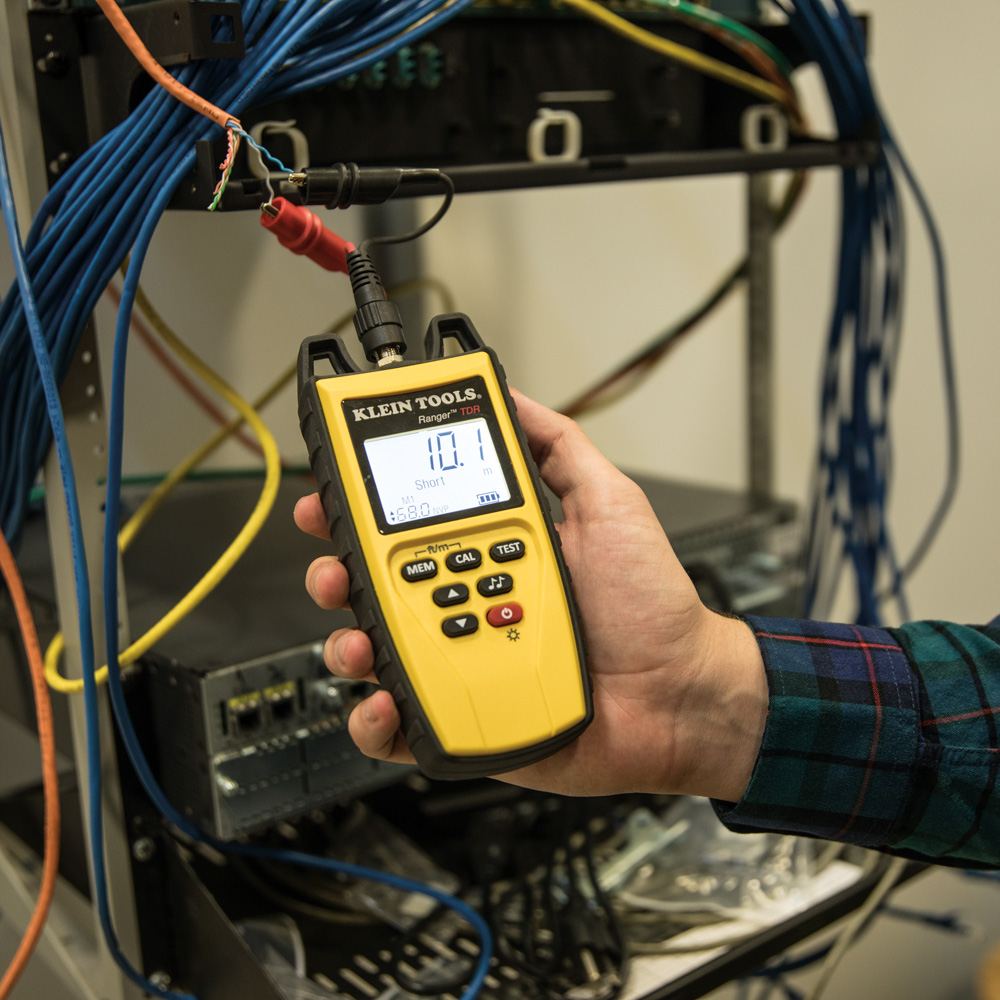

Determine if cable run is broken or damaged
Ensure compliance and identify cable runs outside specification
The Tone Generator traces and identifies cables. Four tone cadences available. (Requires analog tone probe - VDV526-054 or VDV500-060 -- both sold separately.)
Measure cable remaining in box or on a reel
Simplify cable estimating and bill jobs more accurately
Adapter cord set includes BNC to F-connector adapter, F-connector adapter, insulated push-on F-connector to alligator clips, insulated BNC connector to alligator clips and insulated push-on F-Connector to RJ45 modular plug

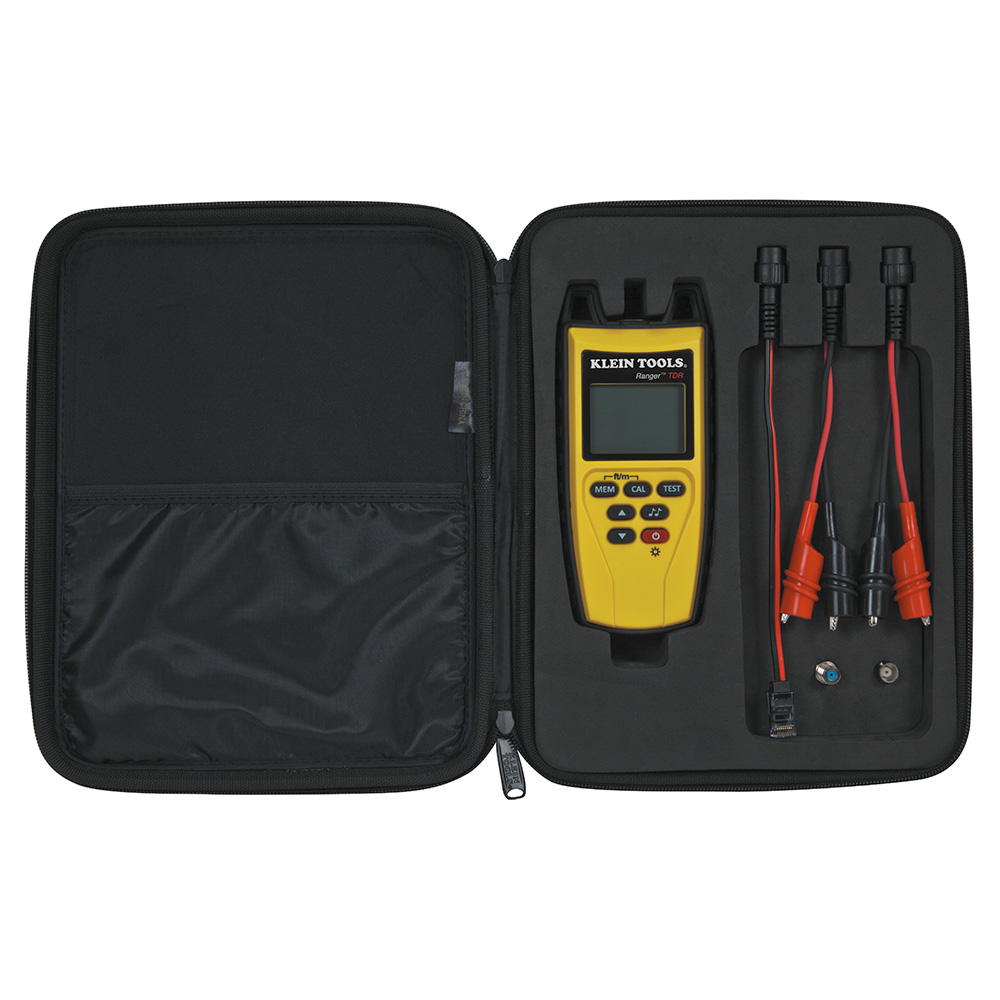

Includes custom designed polyester carrying case
Klein Tools' VDV Ranger TDR Kit allows you to test and measure cable length with the latest technology. Time Domain Reflectometry Spread Spectrum (TDR-SS) technology measures cable length up to 3,000 feet (914 m) with superior accuracy. This will help you simplify cable estimating and bill jobs more accurately.
Specifications
Overall Length:
1.297'' (3.3 cm)
Overall Height:
6.797'' (17.3 cm)
Overall Width:
3.156'' (8 cm)
Batteries:
4 x AA
Battery Life:
Active: 15 hr; Standby: 4 yr.
Accuracy:
±(1% + 3 ft.) ± (1% + 1 m)
Low Battery Indicator:
Yes
Display:
2-1/4'' (57.15 mm) Backlit LCD
Length Measurement Method:
Spread Spectrum Time Domain Reflectometry
Connection & Adapter Types:
Multi-Adapter Set
Maximum Cable Length:
3000' (914 m)
Voltage Warning:
Yes
Open Fault:
Yes
Included:
Tester, Adapter Cord Set (BNC to F-connector adapter, F-connector adapter, Insulated Push-on F-connector to alligator clips; Insulated BNC Connector to alligator clips; Insulated Push-on F-Connector to RJ45 plug) and Carrying Case, 4 x AA Alkaline Batteries
On-Board Calibration Memory:
2 Storage Locations
Multiple Style Tone Generator:
4
Weight:
12 oz (340 g)
UPC:
92644581878
California residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Warnings
- Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
- Always wear approved eye protection.
- Do NOT use on energized circuits or cabling systems.
- Connecting the instrument to voltages above the Safety Extra Low Voltage range of less than 60V peak AC or DC may pose a safety hazard to the user.
- The Ranger TDR internal components are protected up to 400V peak AC or DC. Connecting the instrument to voltages above this range may pose a safety hazard to the user and the instrument.
