TDR Cable Length Meter
501915
TDR Cable Length Meter
501915
$209.99
Cable length meter measures length of electrical, data, two-wire and Romex® cables up to 3000 feet (914 m)
TDR technology measures Distance-to-Fault, Open or Short, on terminated or unterminated cable
Programmed with Velocity of Propagation (VoP) values for Coax, Data, Romex® and other multiwire cables for accurate length measurement within +/-(2-Percent plus 3-Foot/0.9 m) accuracy
Stores custom cable VoP values for consistently accurate results and time savings

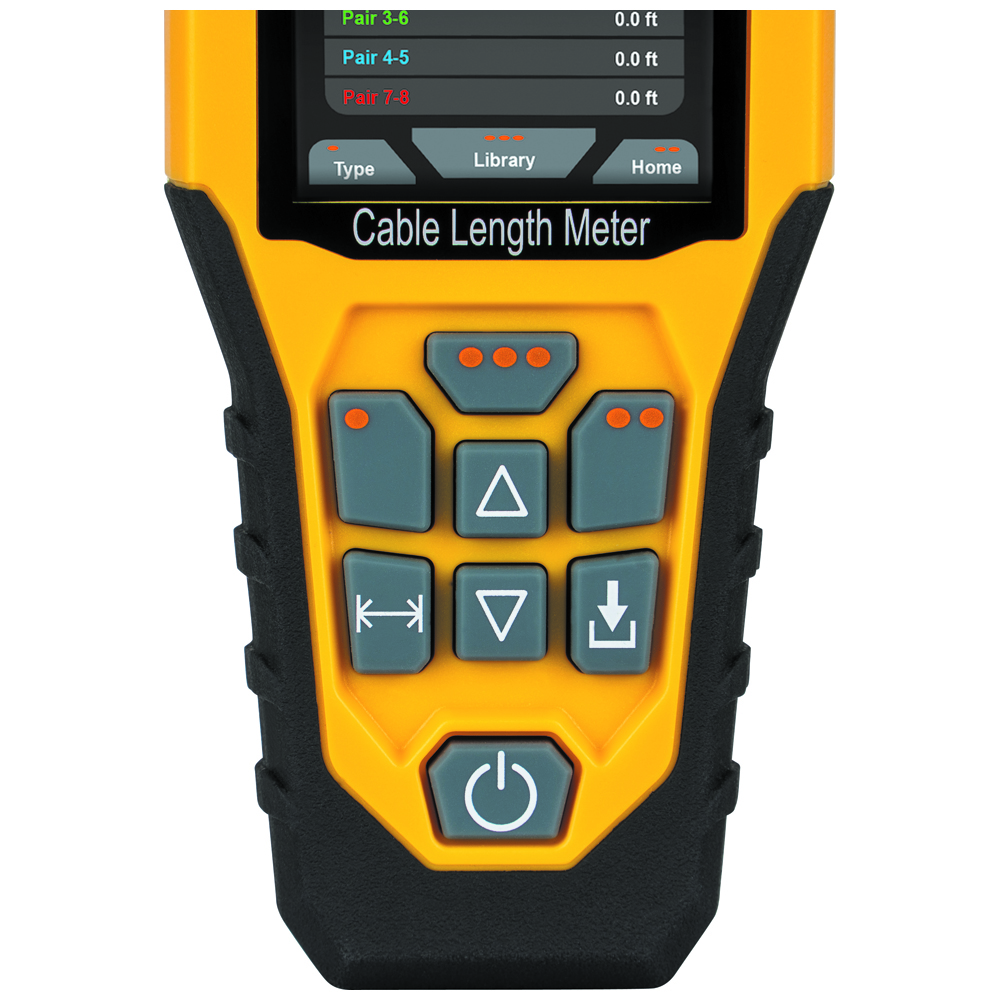

Simple interface with full color, interactive LCD
Tones unenergized, open-ended wires for wire tracing (requires Analog Probe (Cat. No. VDV500-123, sold separately)

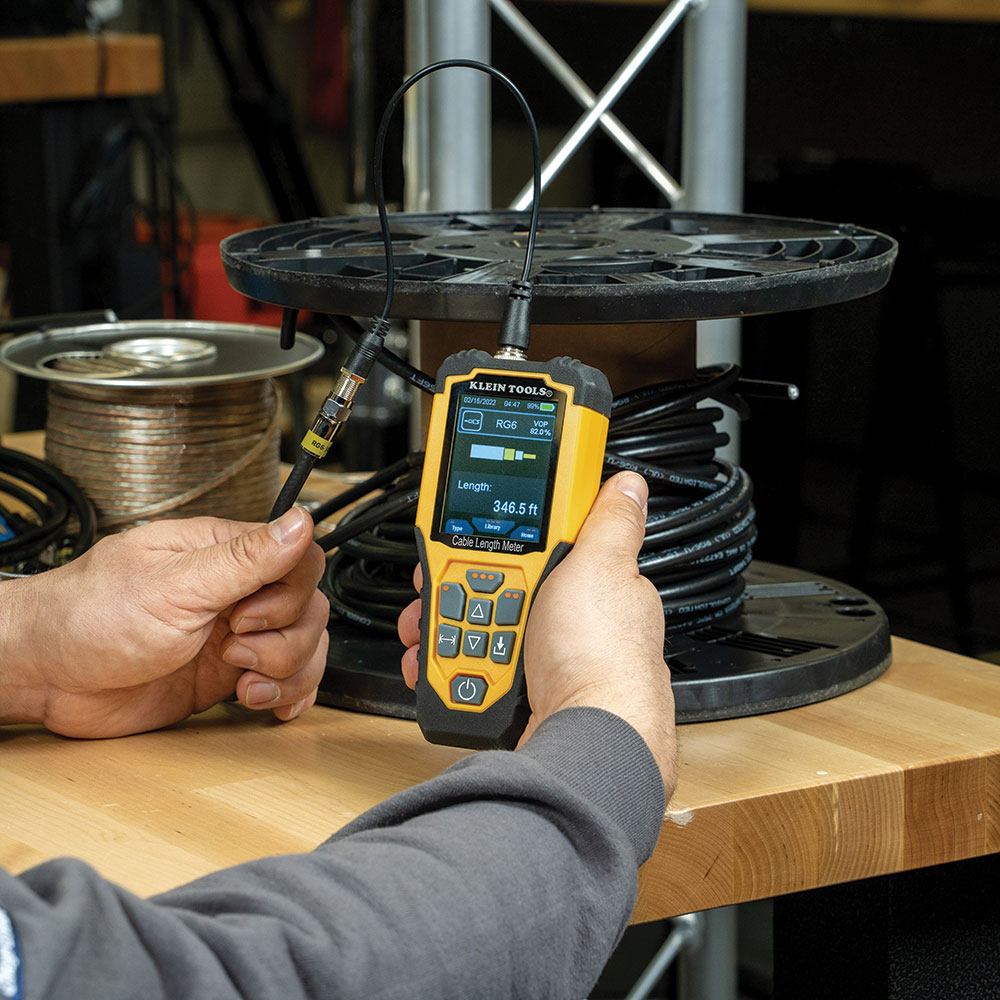

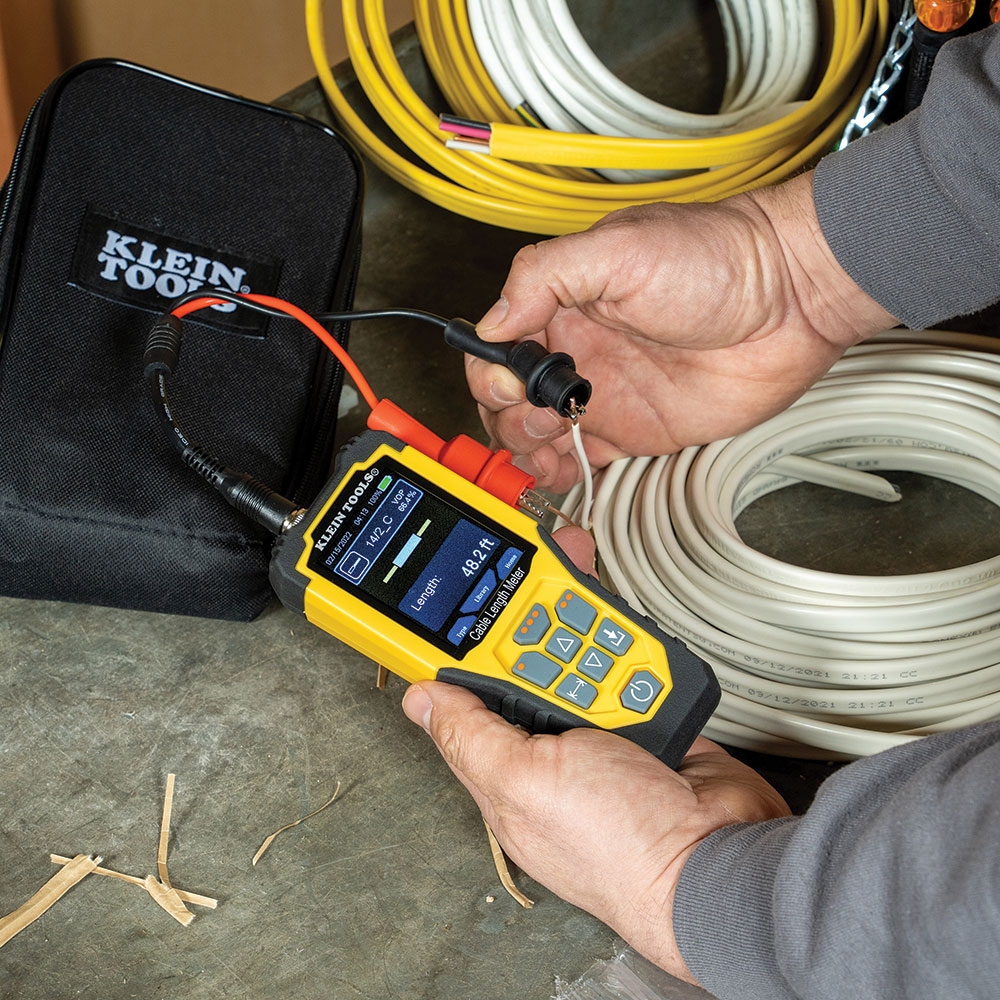

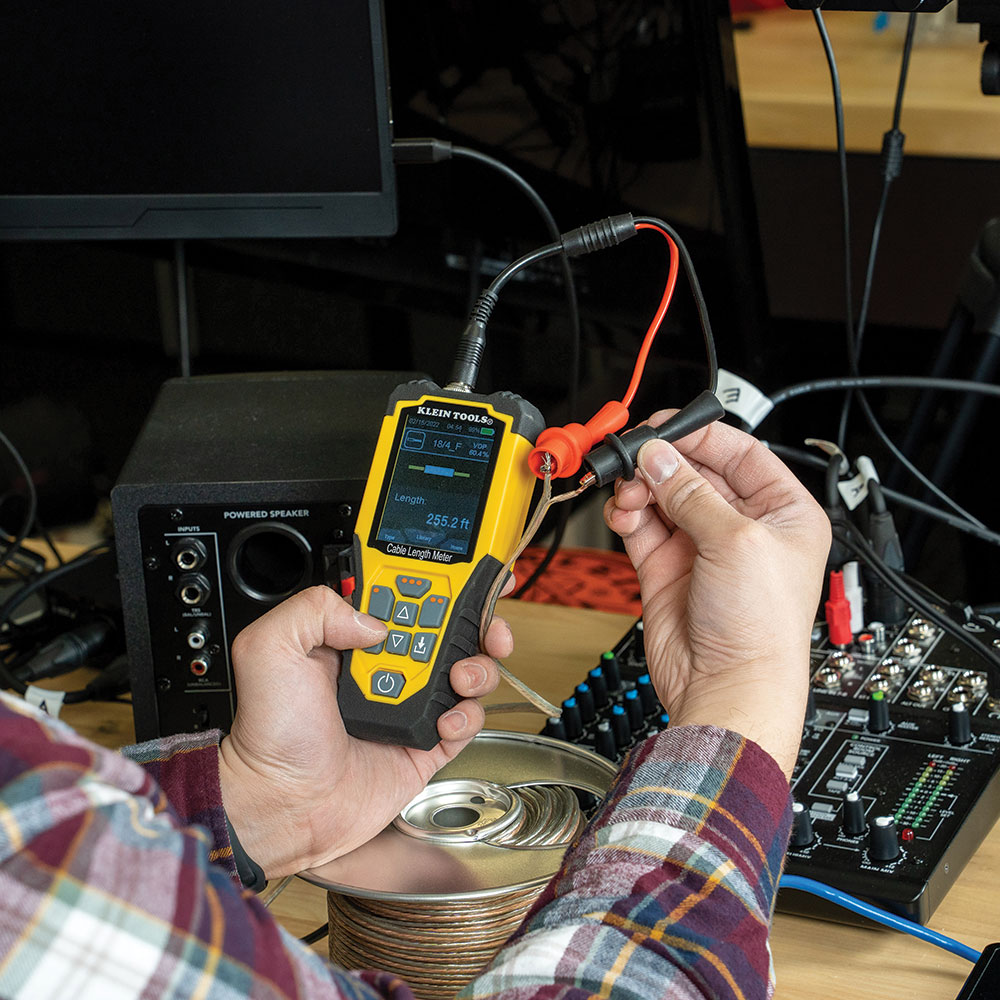

Coax-BNC or high quality alligator clips for quick, easy connection to test most cable types

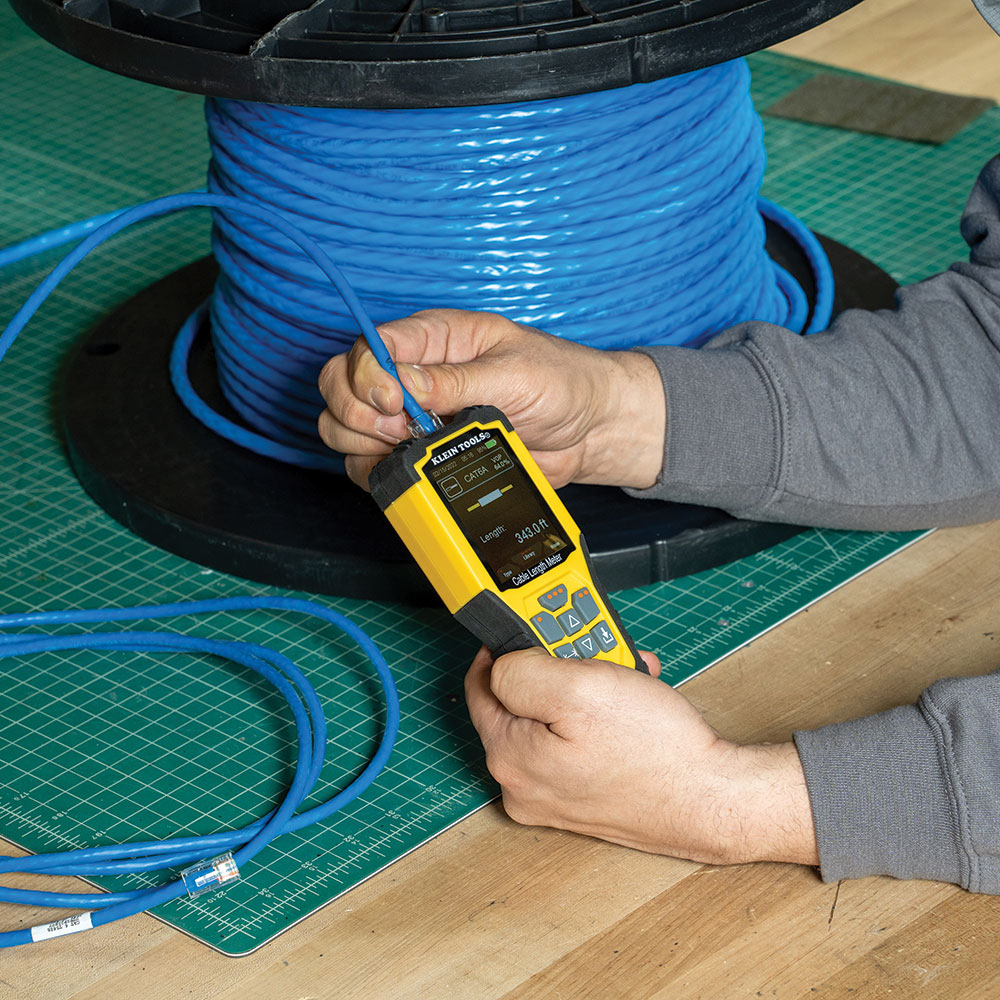

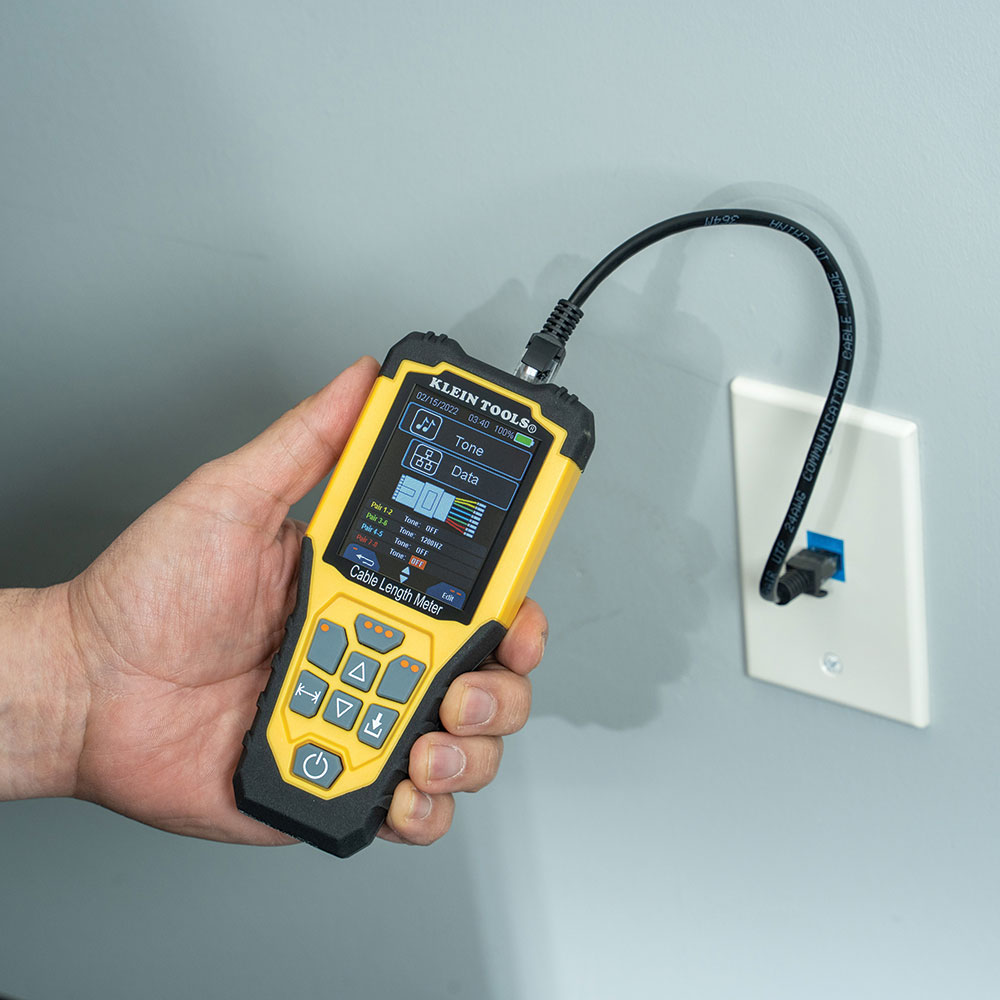

RJ45 jack for accurate length measurement of terminated data cables
Measurements can be switched between and metric and imperial units

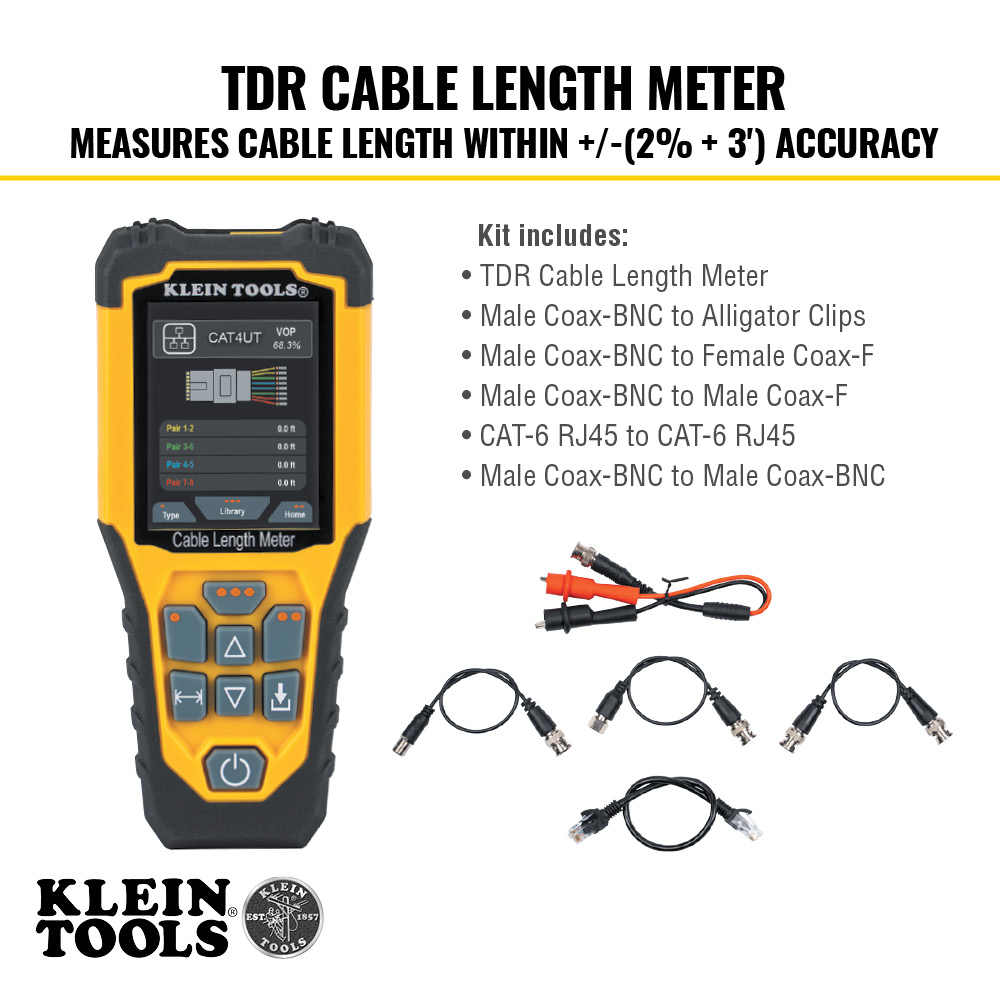

Includes padded carrying case and leads

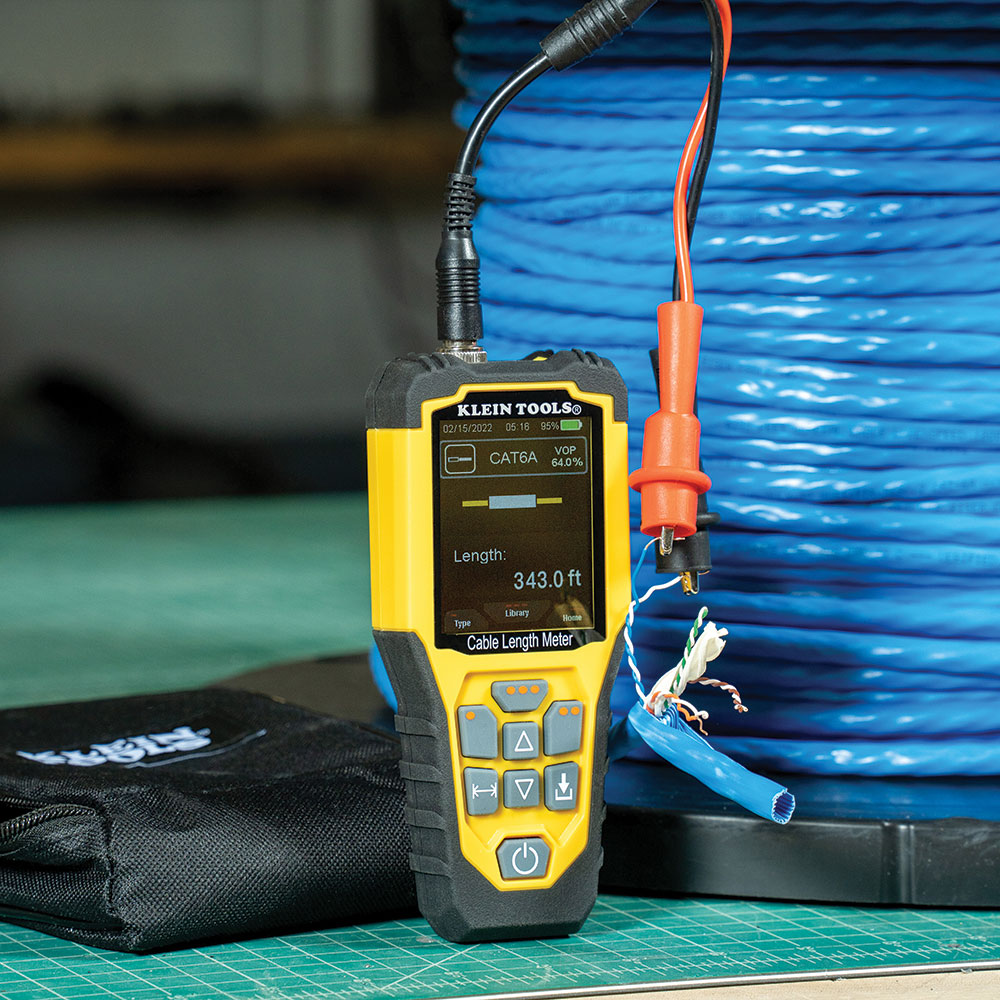

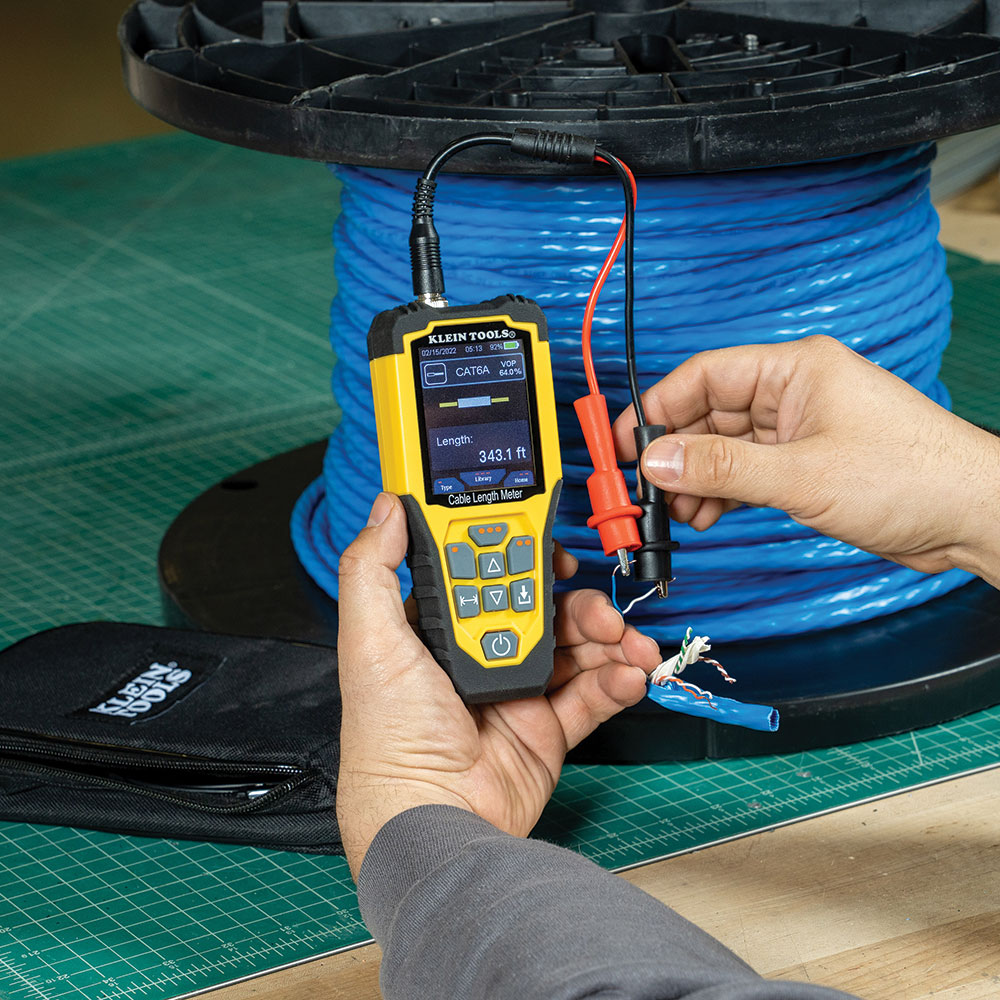

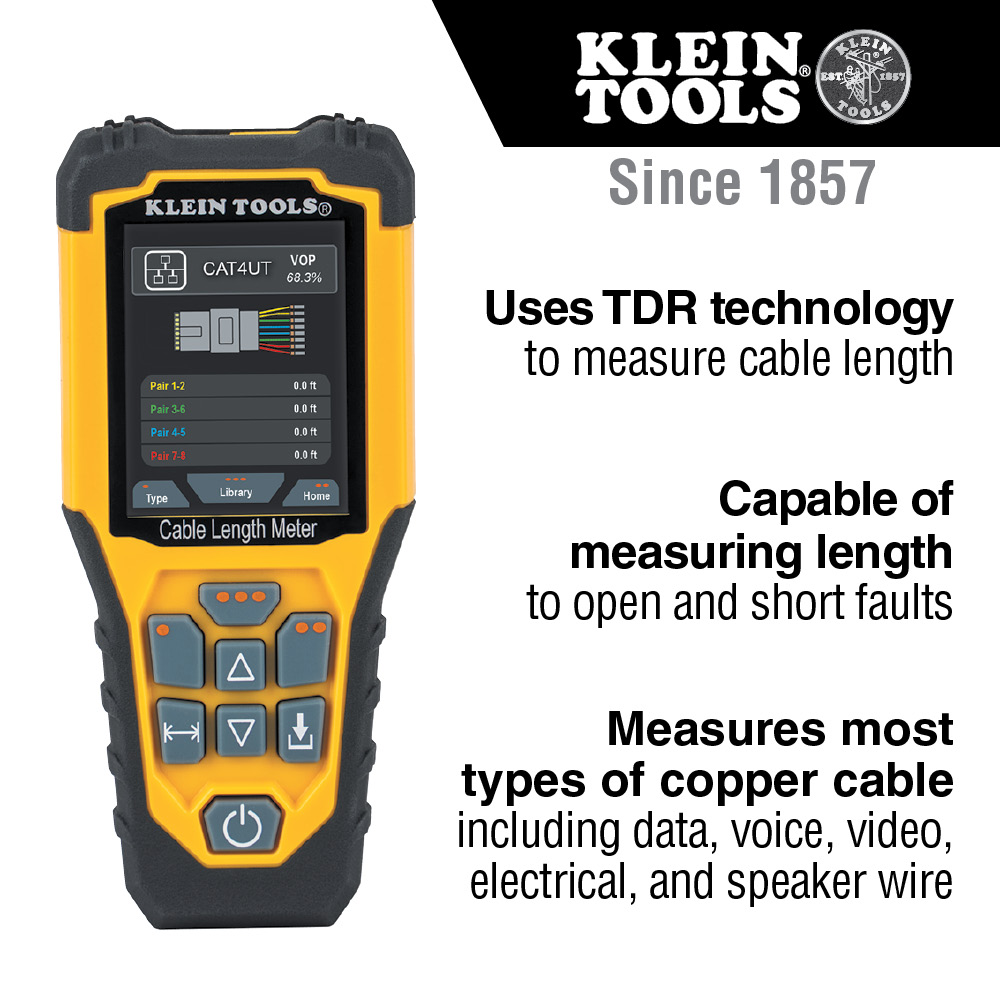

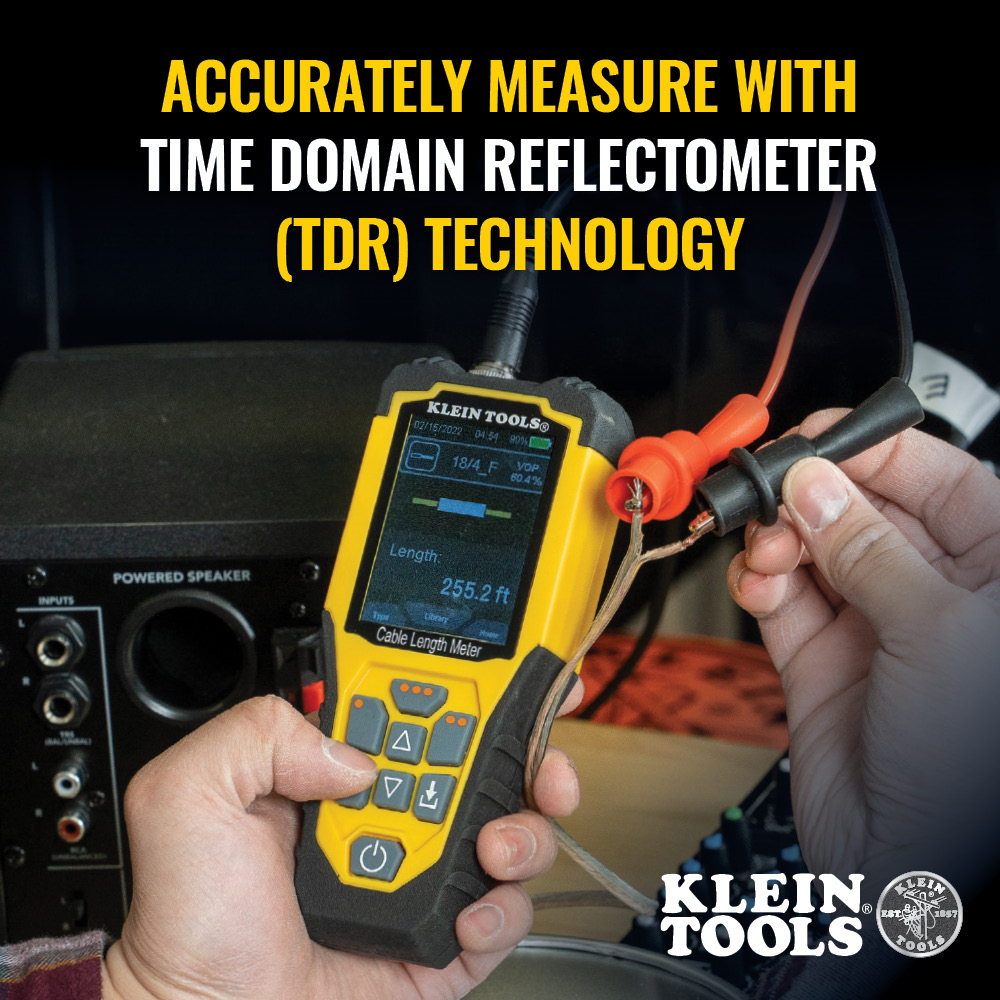

The Klein Tools Cable Length Meter is a portable Time Domain Reflectometry (TDR) cable length tester. It measures cable length, calibrates Velocity of Propagation (VoP) values, finds distance to faults in cables, and provides built-in tone generation for cable tracing. This tester provides accurate cable length measurement for a wide variety of cable types at an affordable price. Includes test leads and a carrying case.
Specifications
Type:
Cable Meter
Application:
Cable Length Measurement
Special Features:
Velocity of Propagation Range: 20 to 99.9%
Cable Type:
Coaxial, Data, Electrical
Overall Length:
2.7'' (6.9 cm)
Overall Height:
6.2'' (15.7 cm)
Overall Width:
1.4'' (3.6 cm)
Material:
ABS Plastic
Batteries:
2 × AA Alkaline
Battery Life:
Active: Approx 15 hr; Standby: Approx 3 yr.
Drop Protection:
6.6' (2 m)
Connection & Adapter Types:
Alligator clips, Female Coax-F, Male Coax-F, RJ45, BNC
Display:
Backlit LCD
Multiple Style Tone Generator:
Two Tones
Faults Detected:
Distance-to-Fault, Open or Short
Test & Measure Types:
Length, Distance-to-Fault
Included:
TDR Cable Length Meter, Batteries, Test Leads, Carrying Pouch
Weight:
7.6 oz (215 g) without batteries
UPC:
092644583858
California residents:
WARNING: Cancer and reproductive harm - See www.P65Warnings.ca.gov for more information.
Warnings
- The Cable Length Meter should NOT be used on energized cabling systems.
- Internal components of the Cable Length Meter are protected up to 30V peak AC or DC. Connecting the meter to voltages above this range may pose a safety hazard to the user and the meter.
